Eaton 106790 LS-S11/RLA Limit switch 400V 6A Lever IP66/IP67 1pc

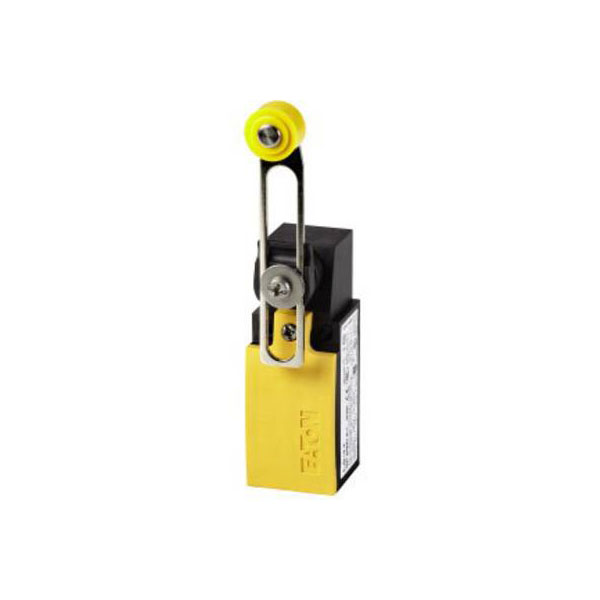

Image Representative of Range

Eaton 106790 LS-S11/RLA Limit switch 400V 6A Lever IP66/IP67 1pc

Eaton
Order Code:

02-5579

Brand: Eaton MPN: 106790 EAN-13: 4015081065578
Qty Unit Price (Ex VAT)
1+ £31.90
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
75 in stock, despatched in 4 working days

The Eaton 106790 LS-S11/RLA is a limit switch designed for voltages up to 400 V and currents of 6 A, featuring an adjustable lever. It boasts a high protection rating of IP66/IP67, making it suitable for harsh environments. This switch is typically used for industrial applications to detect the presence or position of an object.
Type Limit switch
Alignment of the control element Roller cam crossed
Ambient temperature during operating -25-70°C
Coating housing Other
Connection Screw terminal
Construction type housing Cuboid
Degree of protection (IP) IP66/IP67
Degree of protection (NEMA) Other
Depth 33.5mm
Diameter sensor 0mm
Dim (L x W x H) 33.5 x 31 x 61 mm
Durability >8 x 10 6 cycles
Explosion safety category for dust None
Explosion safety category for gas None
Forced opening TRUE
Height 61mm
Height of sensor 61mm
Housing Material Plastic
Length 33.5mm
Length of sensor 33.5mm
Material Plastic
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute LS-S11/RLA
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of safety auxiliary contacts 1
Operation type Lever (adjustable)
Output electronic FALSE
Rated operation current Ie at AC-15, 125 V 6A
Rated operation current Ie at AC-15, 230 V 6A
Rated operation current Ie at AC-15, 24 V 6A
Rated operation current Ie at DC-13, 125 V 0.8A
Rated operation current Ie at DC-13, 230 V 0.3A
Rated operation current Ie at DC-13, 24 V 3A
Suitable for safety functions TRUE
Switching current (max.) 6A
Switching function Slow-action switch
Switching function latching FALSE
Switching Voltage 400V
Type of control element Adjustable roller lever
Type of electric connection Cable entry metrical
Type of interface None
Type of interface for safety communication None
Width 31mm
Width sensor 31mm
With status indication FALSE
