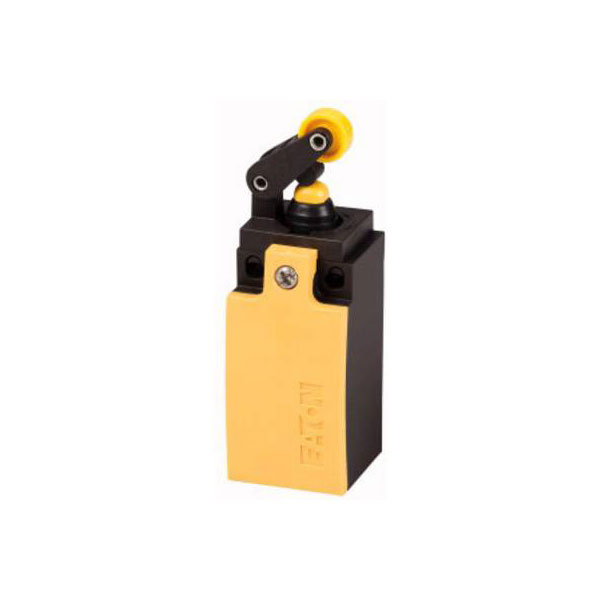

Eaton manufactures the 106781 LS-S02/L limit switch, which operates at 400 V and 6 A with a lever mechanism and is rated to IP66/IP67. This robust switch is ideal for industrial environments where dust and water resistance are crucial. It is commonly used to detect the presence, absence, or position of objects in automation systems.
| Type |
Limit switch |
| Alignment of the control element |
Other |
| Ambient temperature during operating |
-25-70°C |
| Coating housing |
Other |
| Connection |
Pull spring |
| Construction type housing |
Cuboid |
| Contact Type |
2 breakers |
| Degree of protection (IP) |
IP66/IP67 |
| Degree of protection (NEMA) |
Other |
| Depth |
33.5mm |
| Diameter sensor |
0mm |
| Dim |
(L x W x H) 33.5 x 31 x 61 mm |
| Durability |
>8 x 10 6 cycles |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Forced opening |
TRUE |
| Height |
61mm |
| Height of sensor |
61mm |
| Housing Material |
Plastic |
| Length |
33.5mm |
| Length of sensor |
33.5mm |
| Material |
Plastic |
| Max. temperature |
+70°C |
| Min. temperature |
-25°C |
| Misc Attribute |
LS-S02/L |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
2 |
| Number of contacts as normally open contact |
0 |
| Number of safety auxiliary contacts |
2 |
| Operation type |
Lever |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 125 V |
6A |
| Rated operation current Ie at AC-15, 230 V |
6A |
| Rated operation current Ie at AC-15, 24 V |
6A |
| Rated operation current Ie at DC-13, 125 V |
0.8A |
| Rated operation current Ie at DC-13, 230 V |
0.3A |
| Rated operation current Ie at DC-13, 24 V |
3A |
| Suitable for safety functions |
TRUE |
| Switching current (max.) |
6A |
| Switching function |
Slow-action switch |
| Switching function latching |
FALSE |
| Switching Voltage |
400V |
| Type of control element |
Roller lever |
| Type of electric connection |
Cable entry metrical |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Width |
31mm |
| Width sensor |
31mm |
| With status indication |
FALSE |
