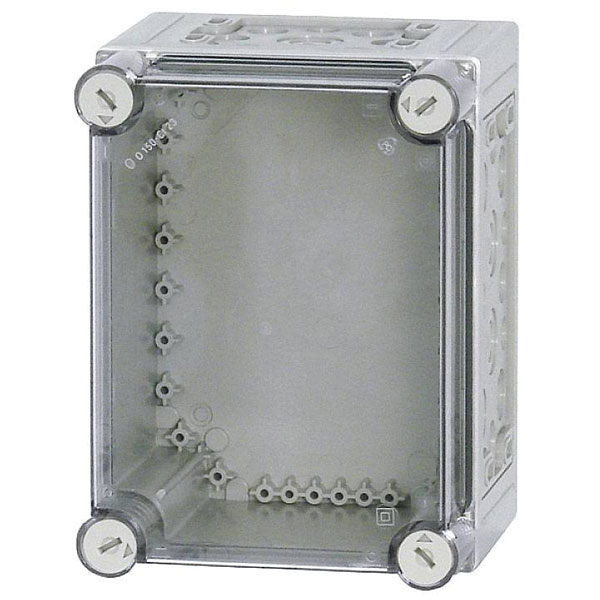

Eaton manufactures the CI43E-125 casing, which is made of grey plastic and measures 375 x 250 x 150 mm. It is designed for housing electronic components or systems. The casing is suitable for use in both industrial and domestic environments.
| Colour |
Grey |
| Material |
Plastic |
| Built-in depth |
125mm |
| Circuit integrity |
Other |
| Cover model |
Closed |
| Cover with overpressure release |
TRUE |
| Degree of protection (IP) |
Other |
| Degree of protection (NEMA) |
Other |
| Depth |
150mm |
| Dim |
(W x H x D) 375 x 250 x 150 mm |
| Factory colour |
Grey |
| Height |
250mm |
| Housing Material |
Plastic |
| Impact strength |
Other |
| Inner depth |
125mm |
| IP rating |
IP65 |
| Manufacturer part # |
093133 |
| Material plate thickness cabinet |
6mm |
| Material plate thickness door/cover |
6mm |
| Misc Attribute 1 |
Insulation housing |
| Misc Attribute 2 |
CI43E-125 |
| Mounting method |
Surface mounted (plaster) |
| Nominal current (In) |
1600A |
| Number of conduit inlets |
76 |
| Number of Modules |
1 |
| Number of openings for flange plates |
4 |
| Number of Rows |
0 |
| Protection class according to IEC 61140 |
II |
| RAL-number |
7035 |
| RoHS-compliant |
Yes |
| Suitable for lightning protection |
TRUE |
| Suitable for outdoor use |
TRUE |
| Surface protection |
Other |
| Transparent cover/door |
TRUE |
| Type |
Casing |
| Type of covering |
None |
| Type of door |
None |
| Weight |
0 |
| Width |
375mm |
| Width in number of modular spacings |
15 |
| With lock |
FALSE |
| With mounting plate |
FALSE |
