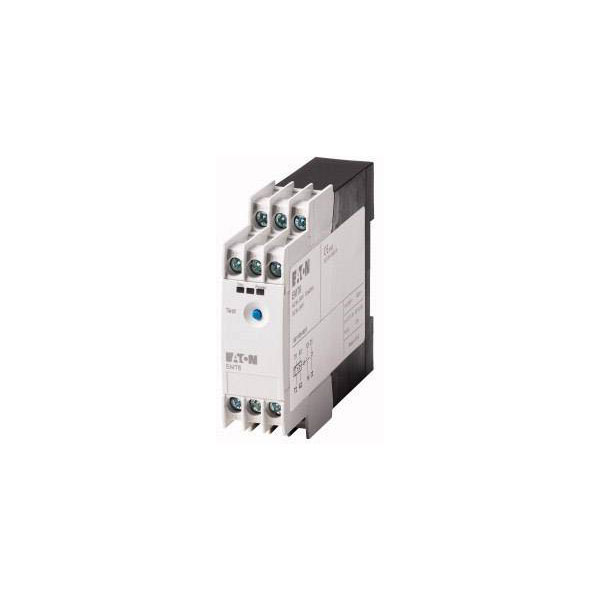

Eaton 066166 EMT6 thermistor relay 24-240V LED snap-on 23x84x104mm

The Eaton Thermistor overload relay EMT6 (23 x 84 x 104 mm) ensures personal safety and staff protection in industrial environments. It is an essential component for workplace and plant safety, offering reliable access control and protection for staff. This device helps prevent equipment overload, thereby enhancing safety measures.

Type	Thermistor overload relay
Connection type auxiliary circuit	Screw connection
Connector	Screw-fit
Dim	(W x H x D) 23 x 84 x 104 mm
Error registration possible	FALSE
External reset possible	FALSE
IP rating	IP20
Max. operating voltage	240V
Min. operating voltage	24V
Misc Attribute	EMT6
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of measuring circuits	1
Operating temperature (max.)	+60°C
Operating temperature (min.)	-25°C
Operating voltage	24 - 240 V
Operating voltage AC 50 Hz	24-240V
Operating voltage AC 60 Hz	24-240V
Operating voltage DC	24-240V
Rated switch current	6A
Resistance measuring range	750-12000Ohm
Supply voltage AC 50 Hz	24-240V
Supply voltage AC 60 Hz	24-240V
Supply voltage DC	24-240V
Switching current (max.)	3A
Temperature measuring range	0-0°C
Type of electric connection	Screw connection
Voltage type (operating voltage)	AC/DC
Voltage type (supply voltage)	AC/DC
Width	23mm
With detachable clamps	FALSE
