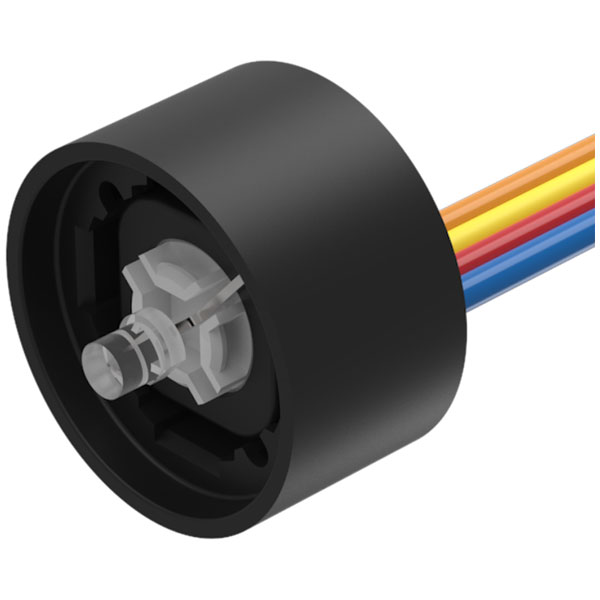

EAO 84-8515.8640 Switching Element Illum Red/Green LED 24VDC 1NO cable 300mm

EAO 84-8515.8640 is a switching element featuring a bi-colour red/green LED, specifically designed to operate at 24VDC. It is equipped with one normally open (1NO) contact and includes a five-pole cable with a length of 300mm, which facilitates integration into various electronic systems. This product is typically used in control panel applications where clear, visual indication of system status is crucial, enabling quick and efficient identification of operational states.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Red / Green
Lamp/Lens Colour	Green, red
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Flat ribbon cable
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.01043
