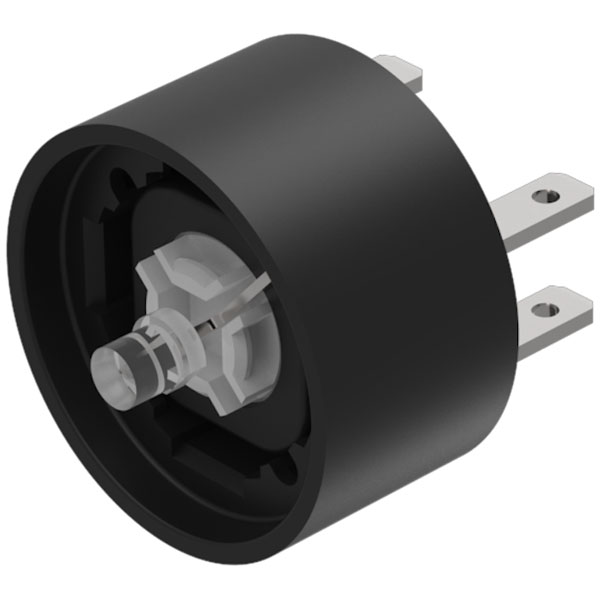

EAO 84-8511.9620 Switching Element illuminated Single Chip LED white 24VDC

EAO 84-8511.9620 is a switching element that features an integrated illumination system utilising a single-chip white LED, designed to operate at a nominal voltage of 24VDC. This product is characterised by its robust construction and reliable performance, making it suitable for various industrial environments where dependable signal indication is required. The switching elements illuminated feature enhances visibility, thereby improving user interface efficiency in control panels and operator consoles. This component is optimal for use in applications such as machinery control.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	White
Lamp/Lens Colour	White
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Plug-in terminal, 2.8 X 0.8 Mm
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.00664
