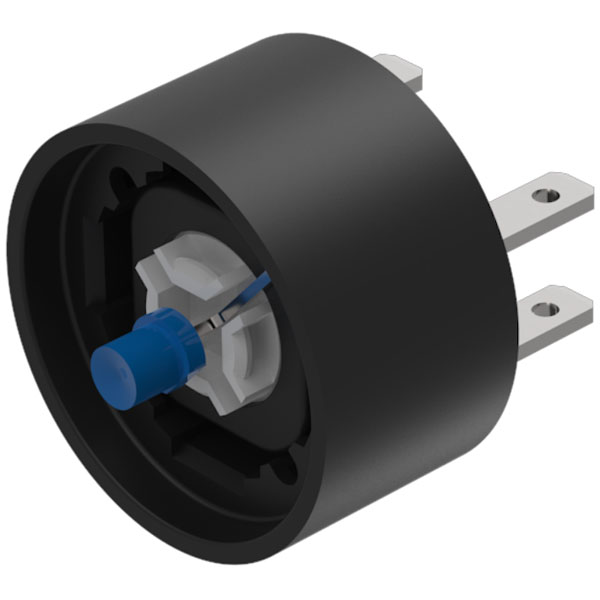

EAO 84-8511.6320 Switching Element with illumination Single Chip LED blu

EAO 84-8511.6320 is a switching element featuring illumination with a single chip LED in blue, designed for applications requiring reliable user interface controls. The switching element is engineered for enhanced durability and visual feedback, providing a precise tactile response and optimal viewing under varying lighting conditions. It is typically used in industrial control panels, transportation systems, and instrumentation where high visibility and rugged design are paramount. The inclusion of a blue LED ensures distinct signalling capability, particularly in environments where such differentiation enhances operational functionality.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Blue
Lamp/Lens Colour	Blue
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	12 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	12 V
Operating Voltage Concat	12 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Plug-in terminal, 2.8 X 0.8 Mm
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.00662
