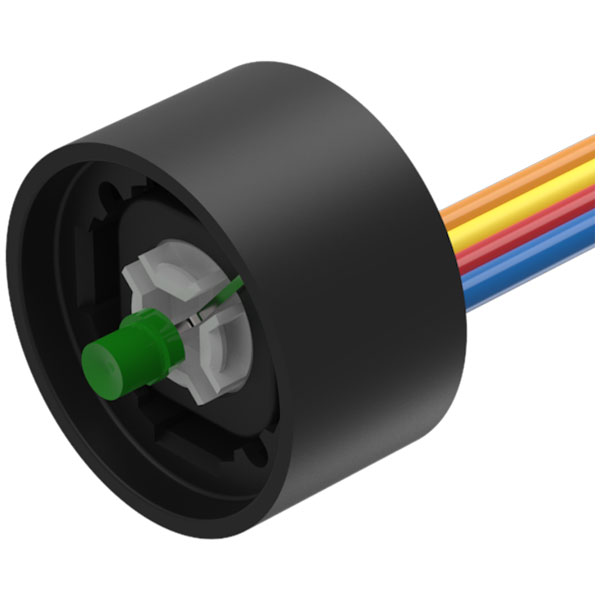

EAO 84-8511.5640 Switching Element with illumination Single Chip LE

EAO 84-8511.5640 is a switching element equipped with a single chip light-emitting diode (LED) for illumination, designed to offer durability and precision in control applications. The unit integrates seamlessly into a variety of panels, providing a reliable interface for user interaction. With its robust construction and long service life, it is commonly employed in industrial machinery, medical devices, and transportation systems where consistent performance is crucial. The illuminated feature ensures visibility in dim environments, which is essential for accurate indication of operational status.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Green
Lamp/Lens Colour	Green
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Flat ribbon cable
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.01489
