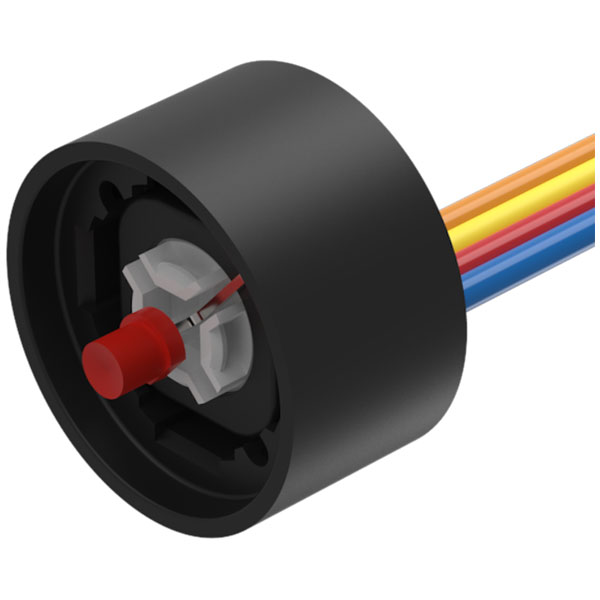

EAO 84-8511.2640 Switching Element with illumination Single Chip LED red, 24VDC

EAO 84-8511.2640 is a robust switching element featuring an integrated single chip LED for illumination, designed for 24V DC applications. This versatile component provides reliable performance in various engineering applications such as control panels, industrial machinery, and instrumentation. The red LED illumination ensures clear visibility of the switching status, enhancing operability in both manual and automated systems. Constructed to meet stringent industry standards, it offers durability and longevity in demanding environments.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Red
Lamp/Lens Colour	Red
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Flat ribbon cable
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.01494
