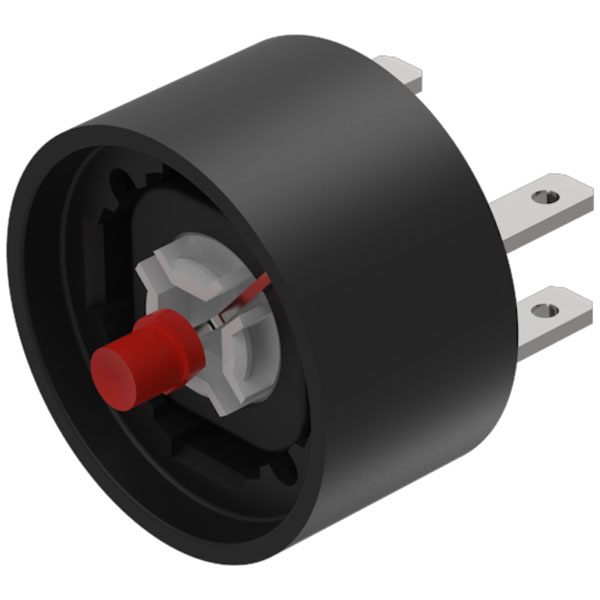

EAO 84-8511.2620 Switching Element with illumination Single Chip LED red, 24V

EAO 84-8511.2620 is a switching element with integrated illumination utilising a single chip red LED, optimised for 24V operation. This component is designed for reliable performance in low-power signalling and control applications, offering both resilience and energy efficiency. Engineered for compatibility in a wide range of electrical systems, the red LED provides clear visual feedback, making it suitable for use in control panels or dashboards where immediate status recognition is crucial.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Red
Lamp/Lens Colour	Red
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Plug-in terminal, 2.8 X 0.8 Mm
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.00668
