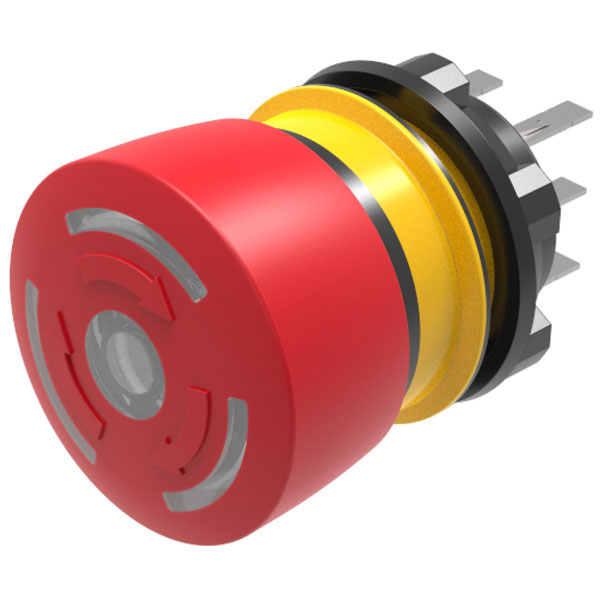

The EAO Series 84 Emergency-Stop Pushbutton is compact, reliable with an attractive design. Suitable for use with machinery and industrial automation equipment.
The switch features an Illuminated, Red, emergency stop mushroom head actuator with a black and Yellow plastic housing with plug-in terminal connection. The Yellow part of the housing features a Green position indication ring, visible when the pushbutton is in the normal (deactivated) position and obscured from view when the pushbutton is pressed (activated).
The E-Stop switch is IP 65/67 rated and has a switching rating of 250V, 3A. The switch is double pole single throw (DPST) with 2NC contacts. It has a maintained action with a clockwise, twist to release mechanism.
The very low back panel depth (13.5mm with cable connection) of the switch makes it particularly suitable for use with hand held control equipment.
- Switching Action: Maintained
- Function: E-Stop Pushbutton
- Illuminated: Yes
- Housing Material: Plastic
- Housing Colour: Yellow
- Button Colour: Red
- Front Diameter: 32 mm
- Mounting cut-out: Ø 22.3 mm
- Front IP Protection: IP65, IP66, IP67
- Contact Type: 1 NC / 1 NO
- Weight: 0.028 kg
| Type |
Latching push |
| Switch Function |
Maintained |
| Voltage Rating |
250V |
| Current Rating |
3A |
| Approbations |
Cb (iec 60947-5-1. Iec60947-5-5), Ccc, En Iso 13850, Ul Nisd |
| Button Colour |
Red |
| Button Housing |
Yellow with Green position band |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Saline Mist: 96 Hours, + 35 °c In Chemical Solution Nacl, As Per En Iec 60068-2-11 | Dry Heat: 96 Hours, + 70 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 40 °c (as Per En Iec 60068-2-1) | Simulated Solar Radiation Test Sa2 And Weathering Test Sb1 As Per En Iec 60068-2-5 |
| Conformities |
Ce, Ukca, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs) |
| Contact Configuration |
DPST |
| Contacts Concat |
2 Nc |
| Contacts Material |
Gold |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 32mm |
| Front Form |
Round |
| Illumination Colour Concat |
Red |
| Illumination Colour(s) |
Red |
| Illumination Type |
LED |
| Ip Front Protection |
Ip65, Ip66, Ip67, According To Din En 60529 |
| IP Rating |
IP65, IP66, IP67 |
| Lens Colour |
Red |
| Lens Illumination |
Illuminated |
| Lens Material |
Plastic, According To Ul 94 V0 |
| Lens Shape |
Mushroom-head |
| Material |
Plastic, According To Ul 94 V0 |
| Mechanical Lifetime |
250 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Concat |
5 - 30 V / 9.7 - 12.4 Ma |
| Operating Current Concat |
9,7 - 12,4 Ma |
| Operating Temperature |
– 25 °c … + 70 °c |
| Operating Voltage 1 Concat |
5 - 30 V |
| Operating Voltage Concat |
5 - 30 V Dc (led) |
| Output Hsd |
Yes |
| Pollution degree |
3, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 60947-5 |
| Release Type |
Twist To Unlock |
| Shock Resistance |
Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27) |
| Switching Action Concat |
Maintained |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Plug-in terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6) |
| Weight |
0.028 |
