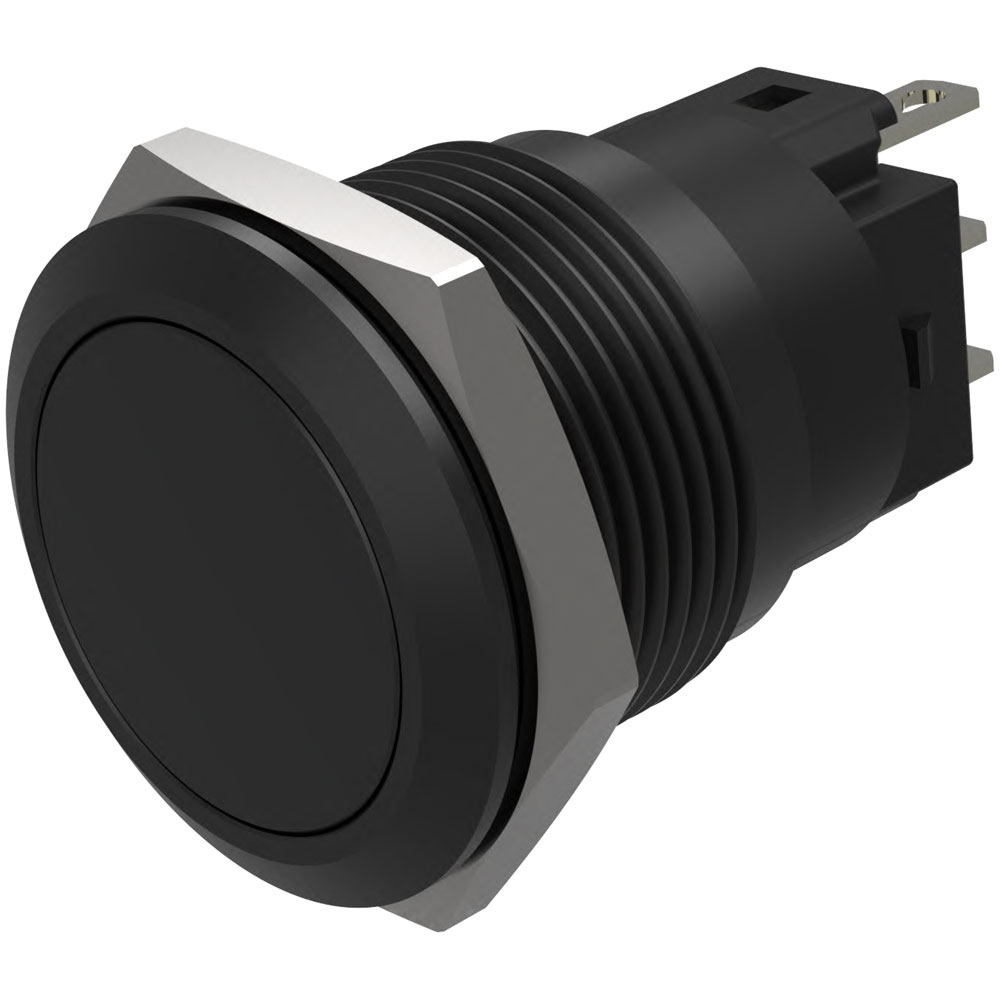

EAO 82-6951.2000 Pushbutton Momentary 22mm Black Flush no LED Solder Terminals

EAO Pushbutton Momentary 22mm Black Flush no LED Solder Terminals - 82-6951.2000.1283. EAO push button switches control the action in a piece of machinery or a particular process. Commonly used within the workplace and home, push button switches are usually constructed from metal or plastic, which should be a consideration when you are choosing a product for your specific application.

• Mounting cut-out Ø 22 mm
• Terminal Soldering terminal, 2.8 x 0.5 mm
• Operating Travel ca. 3 mm
• Lens illumination non illuminative
• Lens colour Black
• Lens shape flush
• Lens material Aluminium
• Lens surface anodised
• Lens optics opaque
• Front bezel colour Black
• Front bezel shape flush
• Front bezel material Aluminium
• Weight 0.018 kg
• Contact material Silver
• Switching action Maintained
• Switching system Snap-action switching element
• Contacts 1 C
• Operating temperature – 30 °C … + 70 °C
• Approbations CB, CCC, C UL, UL
• Operating force 4 … 7 N
• Climate resistance Damp heat, 21 days according to IEC 60512-11
• Mechanical lifetime 500 000 cycles of operation
• Tightening torque Fixing nut 0.5 Nm min. ... 1.2 Nm max.

Type	Push-button
Contact Configuration	Momentary
Switch Function	Off-(On)
Current Rating	3A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	22
