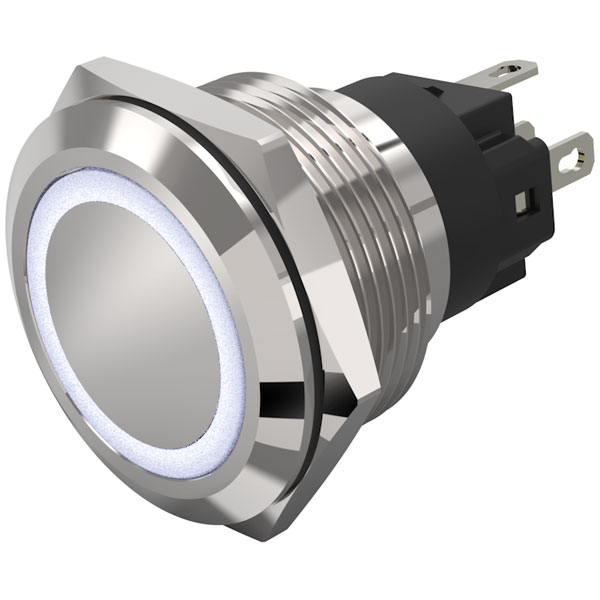

EAO 82-6651.2154 Illuminated pushbutton Ø 22 mm stainless steel 316L

EAO 82-6651.2154 is a precision-engineered illuminated pushbutton with a Ø 22 mm design, manufactured using high-grade stainless steel 316L known for its exceptional corrosion resistance and durability. This pushbutton is equipped with an illuminated feature, facilitating operation in low-light conditions, and is designed to withstand rigorous industrial environments. It is commonly employed in applications such as control panels, machinery automation systems, and public transport devices, where reliability and longevity are paramount.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Current Rating	3A
Mounting	Panel
Illumination	Red
Panel Cutout Dimensions	22
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Cn
Front Bezel Material	Stainless Steel 316l
Front Bezel Shape	Flush
Front Dimension Concat	Ø 22mm
Front Form	Round
Illumination Colour Concat	White
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Stainless Steel 316l
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 19mm
Operating Concat	24 V
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc (led)
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Maintained
Switching System	Snap-action Switching Element
Terminal Concat	Plug-in terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.016
