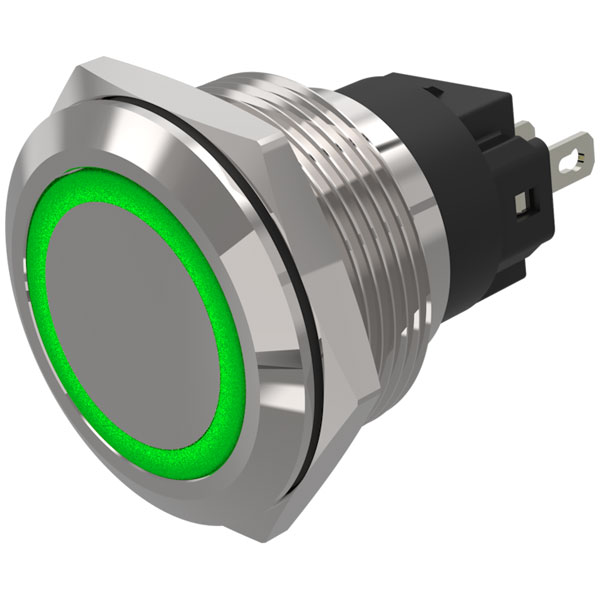

EAO 82-6551.0133 is an indicator with a 22 mm aluminium bezel, featuring a flush/flush design. This component is equipped with soldering terminals and has ring-shaped contacts, tailored to operate with a green illumination at 12 V AC/DC. Its robust construction and dependable performance make it well-suited for integration into control panels, signalling systems, and other industrial applications requiring reliable visual status indicators. The indicators compatibility with varying voltage inputs and flush mounting design allows for a wide range of applications.
| Type |
Indicator |
| Contact Configuration |
SPDT NO/NC |
| Current Rating |
3A |
| Mounting |
Panel |
| Illumination |
Green |
| Panel Cutout Dimensions |
22 |
| Approbations |
Cb, Ccc, C Ul, Ul |
| Climate Resistance |
Damp Heat, 21 Days According To Iec 60512-11 |
| Conformities |
Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Material |
Aluminium |
| Front Bezel Shape |
Flush |
| Front Dimension Concat |
Ø 25mm |
| Front Form |
Round |
| Illumination Colour Concat |
Green |
| Ip Front Protection |
Ip65, Ip67 |
| Lens Colour |
Nature |
| Lens Illumination |
Illuminated |
| Lens Material |
Aluminium |
| Lens Shape |
Flush |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Concat |
12 V / 7mA |
| Operating Current Concat |
7mA |
| Operating Temperature |
– 30 °c … + 70°C |
| Operating Voltage 1 Concat |
12 V |
| Operating Voltage Concat |
12 V Ac/dc |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Shock Resistance |
Max. 500 M / S² As Per Iec 60068-2-27 |
| Terminal Concat |
Soldering terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6 |
| Weight |
0.018 |
