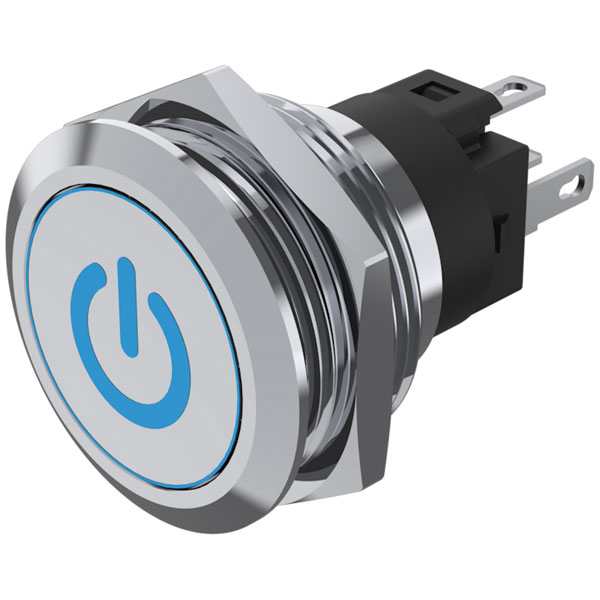

EAO 82-6151.2A24.B002 22mm Illum PB Symbol-Standby Solder Maint Blue 24VDC LED

EAO 82-6151.2A24.B002 is a 22 mm illuminated pushbutton designed for applications requiring a clear and visible indication of Standby mode, made possible by its illuminated symbol. This robust component features a maintained action, ensuring that it remains in its selected state until manually reset. Engineered with soldering terminals for reliable electrical connections, the pushbutton operates effectively with a 24 V DC current, thanks to its blue LED illumination. Typical uses include industrial control panels.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Current Rating	3A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	22
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Cn
Front Bezel Material	Stainless Steel 304
Front Bezel Shape	Flush
Front Dimension Concat	Ø 22mm
Front Form	Round
Illumination Colour Concat	Blue
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Plastic Metalised
Lens Shape	Flush
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 19mm
Operating Concat	24 V
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Symbol	Standby
Terminal Concat	Soldering terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.025
