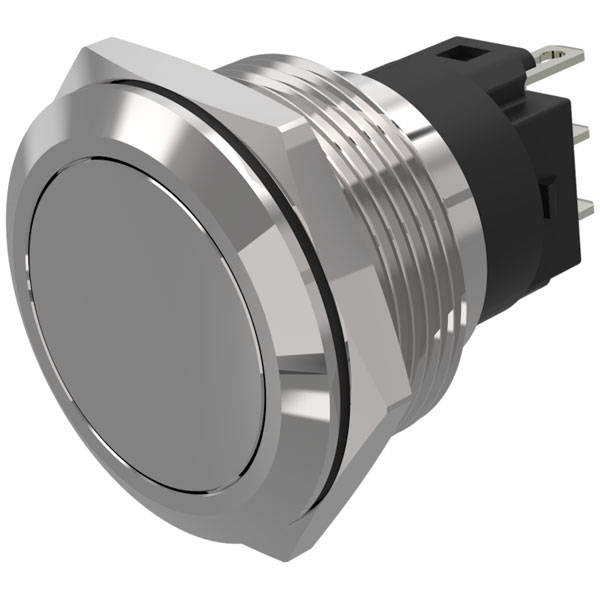

EAO 82-6151.2000 is a pushbutton designed with a maintained operation style, featuring a 22.5mm diameter which is suitable for a range of industrial applications. Constructed from stainless steel, the buttons flush and flat surface provides durability and resistance to corrosion, indicating its suitability for harsh environments. This component does not integrate any LED or colour elements, ensuring simplicity and reliability in its operation. Common engineering applications for this pushbutton include control panels and machinery interfaces.
| Type |
Pushbutton |
| Contact Configuration |
SPDT NO/NC |
| Current Rating |
3A |
| Mounting |
Panel |
| Illumination |
Non-Illuminated |
| Panel Cutout Dimensions |
22.5 |
| Approbations |
Cb, Ccc, C Ul, Ul |
| Climate Resistance |
Damp Heat, 21 Days According To Iec 60512-11 |
| Conformities |
Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 C |
| Contacts Material |
Silver |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Material |
Stainless Steel |
| Front Bezel Shape |
Flush |
| Front Dimension Concat |
Ø 25mm |
| Front Form |
Round |
| Ip Front Protection |
Ip65, Ip67 |
| Lens Colour |
Silver |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Stainless Steel |
| Lens Shape |
Flush |
| Mechanical Lifetime |
500 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Concat |
/ |
| Operating Temperature |
– 30 °c … + 70°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Shock Resistance |
Max. 500 M / S² As Per Iec 60068-2-27 |
| Switching Action Concat |
Maintained |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Soldering terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6 |
| Weight |
0.018 |
