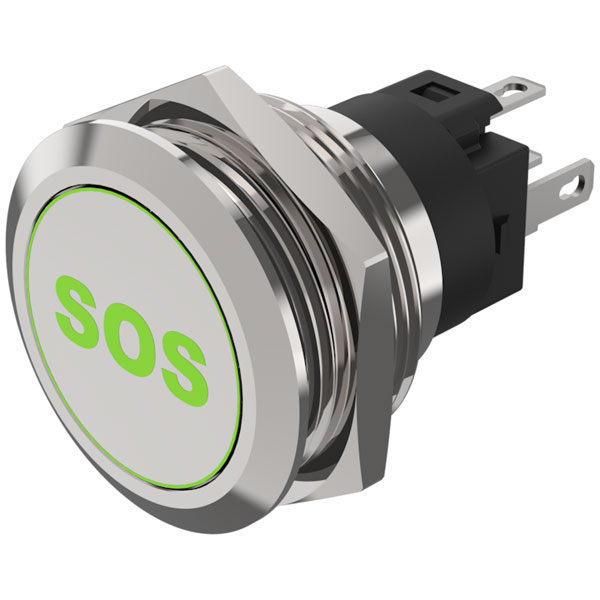

EAO 82-6151.1AA4.B015 22mm Illum PB Symbol-SOS Solder Mom. Red/Green 24VDC LED

EAO 82-6151.1AA4.B015 is a 22 mm illuminated pushbutton featuring a dual-colour LED capable of displaying both red and green lights. It bears an illuminated symbol for SOS and is designed with a momentary action, meaning it requires continuous pressure to remain activated. Engineered with soldering terminals, this pushbutton operates at a low voltage of 24 V DC, which is suitable for a variety of safety and emergency signalling applications.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Switch Function	Off-(On)
Current Rating	3A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	22
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Cn
Front Bezel Material	Stainless Steel
Front Bezel Shape	Flush
Front Dimension Concat	Ø 25mm
Front Form	Round
Illumination Colour Concat	Red/green
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Plastic Metalised
Lens Shape	Flush
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Concat	24 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Symbol	Sos
Terminal Concat	Soldering terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.025
