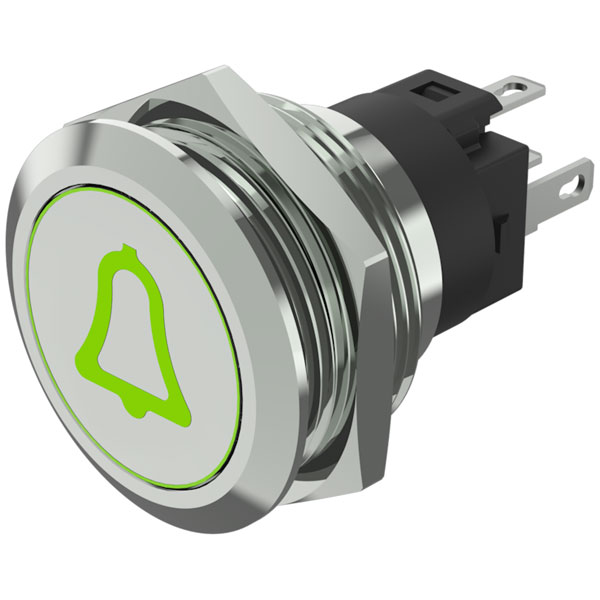

EAO 82-6151.1A34.B005 22mm Illum PB Symbol-Bell Solder Mom. Green 24VDC LED

EAO 82-6151.1A34.B005 refers to a 22 mm illuminated pushbutton featuring a bell symbol that is backlit. This component is configured with a momentary action, meaning it only stays active as long as it is pressed, and is equipped with soldering terminals for secure electrical connections. The pushbutton is illuminated in green and is powered by a 24 V DC LED, offering visibility in various lighting conditions. It is typically utilised in control panels.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	Off-(On)
Current Rating	3A
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	22
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Cn
Front Bezel Material	Stainless Steel 304
Front Bezel Shape	Flush
Front Dimension Concat	Ø 22mm
Front Form	Round
Illumination Colour Concat	Green
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Plastic Metalised
Lens Shape	Flush
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 19mm
Operating Concat	24 V
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Symbol	Bell
Terminal Concat	Soldering terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.025
