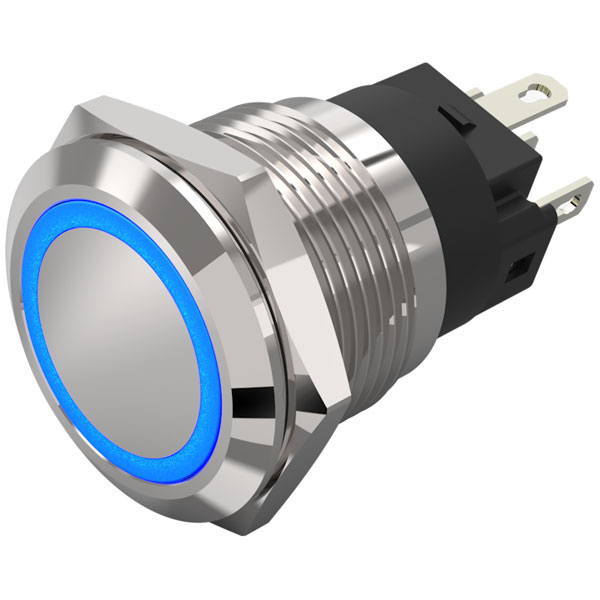

EAO 82-5551.2124 19mm Illum PB Alu flush/flush Solder Maint Ag Ring Blue 24 V DC

EAO 82-5551.2124 is an illuminated pushbutton featuring a 19 mm diameter and is crafted from aluminium in a flush/flush design. This component includes soldering terminals and operates on a maintained action, employing silver contacts which enhance its electrical conductivity and durability. The pushbutton is equipped with a distinctive blue ring illumination and is designed to operate at a voltage of 24 V DC. Such pushbuttons are commonly utilised in various engineering applications, including control panels, and machinery interfaces.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Current Rating	3A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	19mm
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Material	Aluminium
Front Bezel Shape	Flush
Front Dimension Concat	Ø 22mm
Front Form	Round
Illumination Colour Concat	Blue
Ip Front Protection	Ip65, Ip67
Lens Colour	Nature
Lens Illumination	Illuminated
Lens Material	Aluminium
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 19mm
Operating Concat	24 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Maintained
Switching System	Snap-action Switching Element
Terminal Concat	Soldering terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.018
