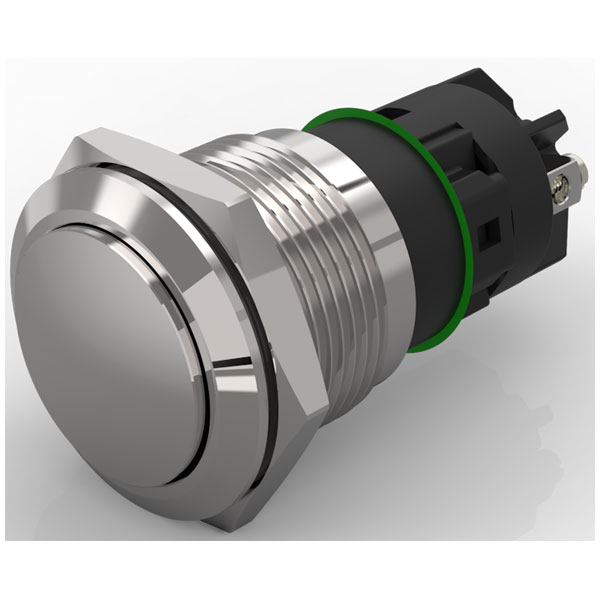

EAO 82-5162.2000 is a robust and reliable pushbutton switch designed for various industrial applications. This component features a durable 19 mm stainless steel actuator available in both flush and raised profiles, ensuring suitability for environments subject to frequent use and potential wear. The pushbutton utilises a maintained action with screw terminal connections, offering ease of installation and secure connectivity in complex systems. Equipped with silver contacts, it ensures efficient electrical conductivity and longevity, making it ideal for use in industrial and machinery control panels.
| Type |
Pushbutton |
| Contact Configuration |
SPNO |
| Switch Function |
N/A |
| Current Rating |
3A |
| Mounting |
Panel |
| Illumination |
Non-Illuminated |
| Panel Cutout Dimensions |
19mm |
| Approbations |
Cb, Ccc, C Ul, Ul |
| Climate Resistance |
Damp Heat, 21 Days According To Iec 60512-11 |
| Conformities |
Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 C |
| Contacts Material |
Silver |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Material |
Stainless Steel |
| Front Bezel Shape |
Flush |
| Front Dimension Concat |
Ø 22mm |
| Front Form |
Round |
| Ip Front Protection |
Ip65, Ip67 |
| Lens Colour |
Silver |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Stainless Steel |
| Lens Shape |
Raised |
| Mechanical Lifetime |
500 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 19mm |
| Operating Concat |
/ |
| Operating Temperature |
– 30 °c … + 70°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Shock Resistance |
Max. 500 M / S² As Per Iec 60068-2-27 |
| Switching Action Concat |
Maintained |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Screw terminal |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6 |
| Weight |
0.02 |
