EAO 82-5152.1124 19 mm Illum. PB St.Steel Flush Screw Mom. Ag Ring Blue 24V DC

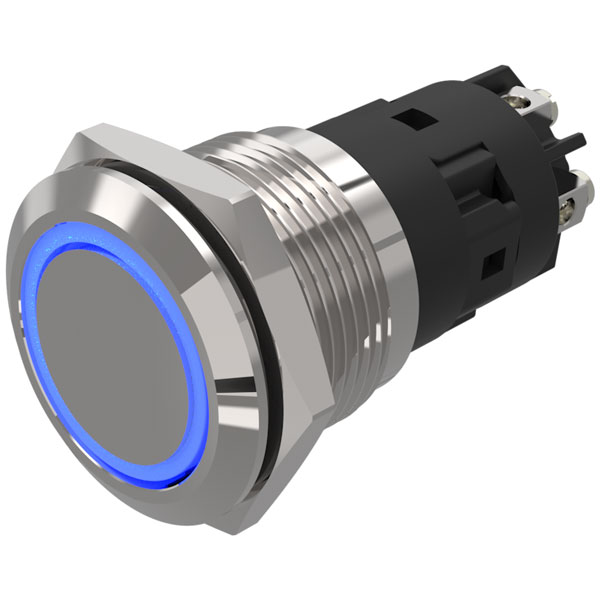

EAO 82-5152.1124 is a 19 mm illuminated pushbutton designed with a stainless steel flush/flush actuator and featuring screw terminals. This momentary switch uses silver contacts, supporting a ring illumination system that delivers a blue light at a voltage of 24 V DC. Renowned for its robust construction, this pushbutton is typically used in industrial control panels, public information terminals, and transportation applications where durability and reliable visual indication are essential.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Switch Function	Off-(On)
Current Rating	3A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	19mm
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Material	Stainless Steel
Front Bezel Shape	Flush
Front Dimension Concat	Ø 22mm
Front Form	Round
Illumination Colour Concat	Blue
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Stainless Steel
Lens Shape	Flush
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 19mm
Operating Concat	24 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Terminal Concat	Screw terminal
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.018
