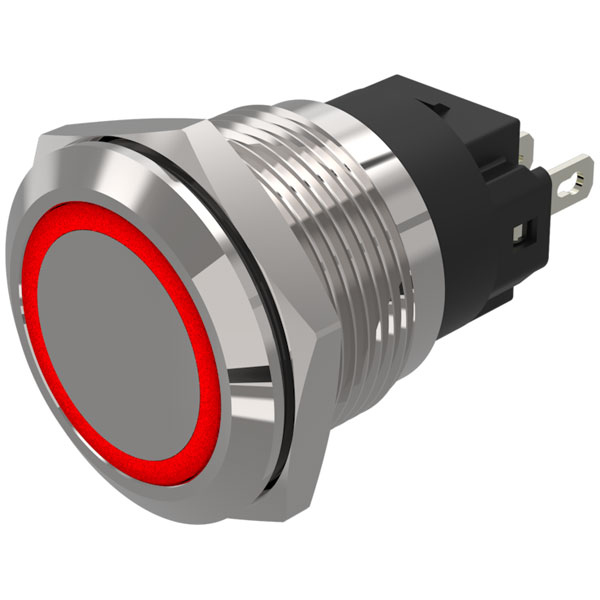

EAO 82-5151.0114 is an indicator featuring a 19mm stainless steel flush/flat ring with a red illumination, designed to operate at 24 volts. The craftsmanship and material selection ensure high durability and resistance to corrosion, which is crucial for maintaining performance in harsh environments. This indicator is equipped with a soldering plug, facilitating easy and reliable connections in various circuit setups. Such components are often deployed in industrial machinery, transportation control panels, and other applications where visual signalling is critical.
| Type |
Indicator |
| Contact Configuration |
SPDT NO/NC |
| Switch Function |
1 breaker |
| Current Rating |
3A |
| Mounting |
Panel |
| Panel Cutout Dimensions |
19mm |
| Approbations |
Cb, Ccc, C Ul, Ul |
| Climate Resistance |
Damp Heat, 21 Days According To Iec 60512-11 |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Material |
Stainless Steel |
| Front Bezel Shape |
Flush |
| Front Dimension Concat |
Ø 22mm |
| Front Form |
Round |
| Illumination Colour Concat |
Red |
| Ip Front Protection |
Ip65, Ip67 |
| Lens Colour |
Silver |
| Lens Illumination |
Illuminated |
| Lens Material |
Stainless Steel |
| Lens Shape |
Flush |
| Mounting Cut Out Dps Concat |
Ø 19mm |
| Operating Concat |
24 V / 7mA |
| Operating Current Concat |
7mA |
| Operating Temperature |
– 30 °c … + 70°C |
| Operating Voltage 1 Concat |
24 V |
| Operating Voltage Concat |
24 V Ac/dc |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Shock Resistance |
Max. 500 M / S² As Per Iec 60068-2-27 |
| Terminal Concat |
Soldering terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6 |
| Weight |
0.018 |
