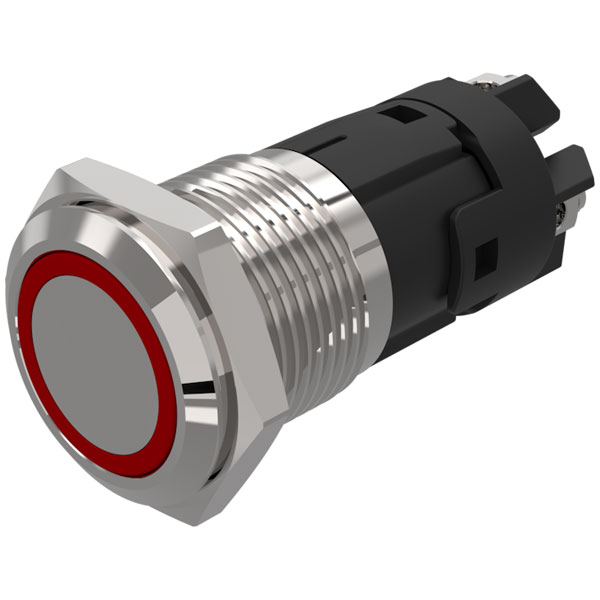

EAO 82-4552.1114 16mm Illum PButton Alu Flush Screw Mom. Ag Ring Red 24 V AC/DC

EAO 82-4552.1114, is a 16 mm illuminated pushbutton designed for use in various engineering applications. This component features an aluminium construction with a flush/flush design, which enhances its durability and sleek appearance. It includes a screw terminal connection and is a momentary switch, meaning it only stays active when pressed. The pushbutton is equipped with silver contacts and offers illuminated indication through a red ring, making it particularly suitable for control panel applications.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	Off-(On)
Current Rating	3A
Mounting	Panel
Illumination	Red
Panel Cutout Dimensions	16
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Material	Aluminium
Front Bezel Shape	Flush
Front Dimension Concat	Ø 18mm
Front Form	Round
Illumination Colour Concat	Red
Ip Front Protection	Ip65, Ip67
Lens Colour	Nature
Lens Illumination	Illuminated
Lens Material	Aluminium
Lens Shape	Flush
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 16mm
Operating Concat	24 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Ac/dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Terminal Concat	Screw terminal
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.018
