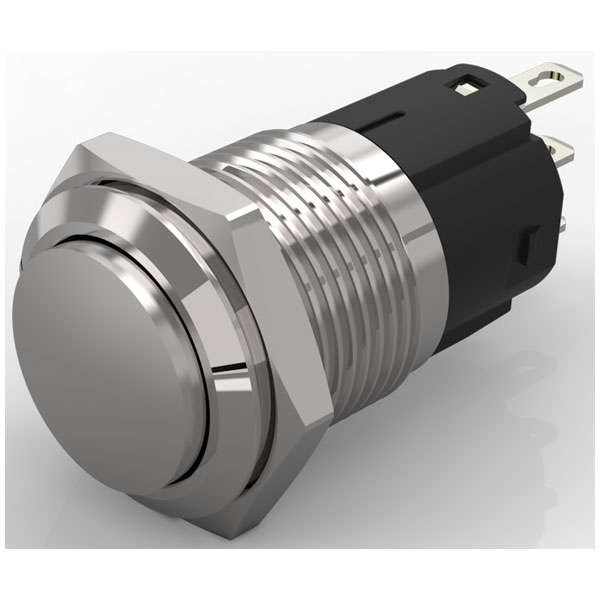

EAO 82-4161.2000 is a 16 mm pushbutton featuring a stainless steel construction designed for durability and resilience in various environments. This component is available with either a flush or raised pushbutton surface, catering to different tactile and aesthetic requirements. The pushbutton utilises a soldering terminal for connections and is engineered with a maintained action mechanism, which ensures consistent performance once actuated. It incorporates high-quality silver contacts, which provide reliable conductivity and longevity, making it suitable for demanding industrial environments.
| Type |
Pushbutton |
| Contact Configuration |
SPDT NO/NC |
| Current Rating |
3A |
| Mounting |
Panel |
| Illumination |
Non-Illuminated |
| Panel Cutout Dimensions |
16 |
| Approbations |
Cb, Ccc, C Ul, Ul |
| Climate Resistance |
Damp Heat, 21 Days According To Iec 60512-11 |
| Conformities |
Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 C |
| Contacts Material |
Silver |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Bezel Material |
Stainless Steel |
| Front Bezel Shape |
Flush |
| Front Dimension Concat |
Ø 18mm |
| Front Form |
Round |
| Ip Front Protection |
Ip65, Ip67 |
| Lens Colour |
Silver |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Stainless Steel |
| Lens Shape |
Raised |
| Mechanical Lifetime |
500 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 16mm |
| Operating Concat |
/ |
| Operating Temperature |
– 30 °c … + 70°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Shock Resistance |
Max. 500 M / S² As Per Iec 60068-2-27 |
| Switching Action Concat |
Maintained |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Soldering terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6 |
| Weight |
0.02 |
