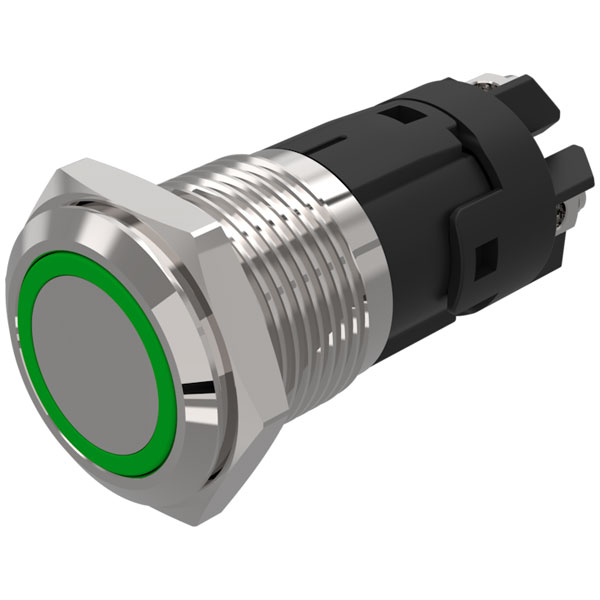

EAO 82-4152.2133 16mm Illum PB St.Steel flush Screw Main. Ag Ring Green 12VAC/DC

EAO 82-4152.2133 is a 16 mm illuminated pushbutton constructed from stainless steel with a flush/flush design. This pushbutton uses a screw terminal connection and is maintained with silver contacts to ensure reliable electrical performance. The unit is equipped with a green ring illumination, operating on a 12 V AC/DC supply, making it suitable for various signalling and control applications. It is commonly utilised in industrial control panels, instrumentation equipment, and other environments where durability and clear visual indication is important.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Current Rating	3A
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	16
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Material	Stainless Steel
Front Bezel Shape	Flush
Front Dimension Concat	Ø 18mm
Front Form	Round
Illumination Colour Concat	Green
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Stainless Steel
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 16mm
Operating Concat	12 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	12 V
Operating Voltage Concat	12 V Ac/dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Maintained
Switching System	Snap-action Switching Element
Terminal Concat	Screw terminal
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.018
