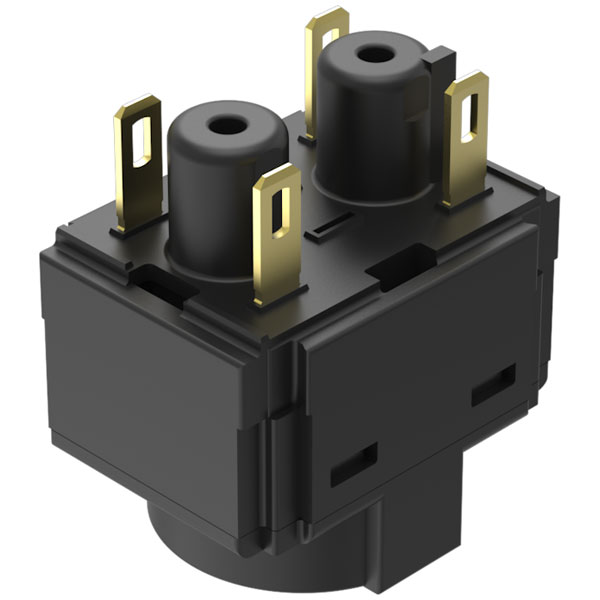

EAO 61-8775.37 Switching element slow-make for E-Stop LL 1NC+1NO ST/PT gold

EAO 61-8775.37 is a switching element characterised by its slow-make contacts, designed specifically for emergency-stop applications. This component features a contact configuration of 1 normally closed (1NC) and 1 normally open (1NO) contact, equipped with both self-cleaning silver contacts and gold plating for enhanced conductivity and resistance to oxidation. This switching element is typically employed in engineering applications that require immediate operational control and safety assurance, such as in industrial machinery or automation systems.

Type	Switch element
Approbations	Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul, Vde
Climate Resistance	Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14
Conformities	Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 Nc / 1 No
Contacts Material	Gold
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Material	Plastic, According To Ul 94 V0
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Pollution degree	3, According To En Iec 60947-1
Rotary Positions	2 Positions
Switching System	Slow-make Switching Element
Terminal Concat	Plug-in terminal, 2.8 X 0.5 Mm
Thermal Current Ith	3 A
Weight	0.0076
