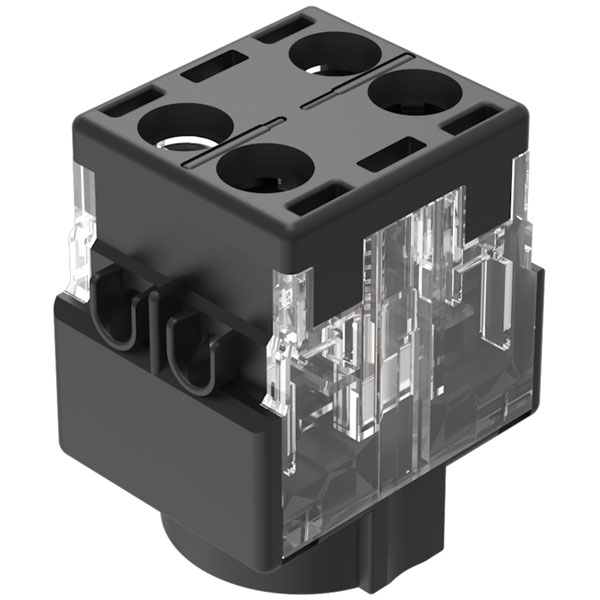

EAO 61-8675.11 is a switching element characterised by its slow-make mechanism and is designed without an integrated lamp component, featuring a configuration of one normally closed (1NC) and one normally open (1NO) contact. This component is manufactured with silver screw terminals, which provide a reliable and robust connection point known for its superior conductivity and resistance to corrosion. With its precise switching capabilities, it is optimally used in control panels or industrial automation systems.
| Type |
Switch element |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul, Vde |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Silver |
| Electrical Lifetime |
=50 000 Cycles Of Operation At 250vac, 2a, Cosf 0.95, |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Material |
Plastic, According To Ul 94 V0 |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 61058-1 |
| Rotary Positions |
2 Positions |
| Shock Resistance |
Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27) |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Screw terminal |
| Thermal Current Ith |
5 A, According To En / Iec 60947-5-1 |
| Vibration Resistance |
Max. 100 M / S² From 10 Hz ... 500 Hz, (sinusoidal En Iec 60068-2-6) |
| Weight |
0.01608 |
