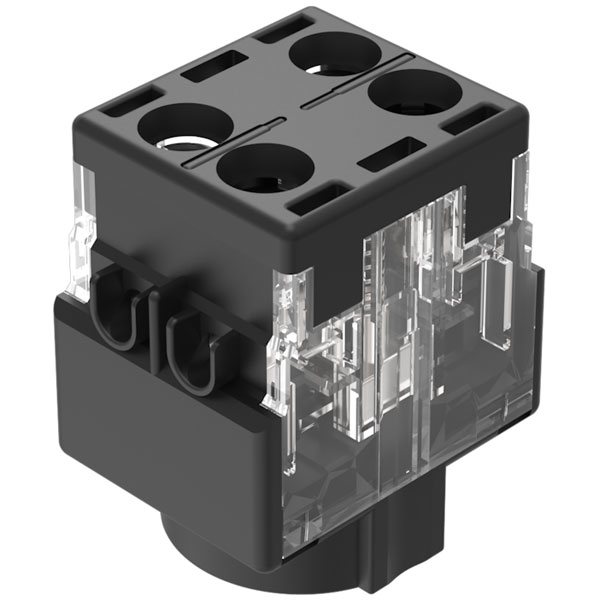

EAO 61-8625.11 is a switching element designed with a slow-make mechanism, without an integrated lamp, featuring a configuration of two normally open (2NO) contacts. The device utilises durable screw terminals and silver contact material to ensure reliable electrical conductivity and longevity under typical operative conditions. This component is particularly suited for applications requiring precise control and robust performance, such as industrial control panels and machinery. Suitable for use in environments demanding dependable contact operation without the inclusion of a lamp.
| Type |
Switch element |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul, Vde |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
2 No |
| Contacts Material |
Silver |
| Electrical Lifetime |
=50 000 Cycles Of Operation At 250vac, 2a, Cosf 0.95, |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Material |
Plastic, According To Ul 94 V0 |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 61058-1 |
| Rotary Positions |
2 Positions |
| Shock Resistance |
Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27) |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Screw terminal |
| Thermal Current Ith |
5 A, According To En / Iec 60947-5-1 |
| Vibration Resistance |
Max. 100 M / S² From 10 Hz ... 500 Hz, (sinusoidal En Iec 60068-2-6) |
| Weight |
0.01583 |
