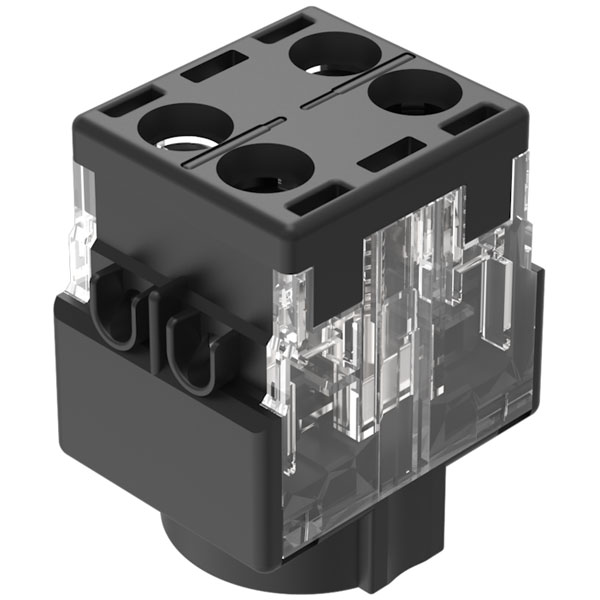

EAO 61-8610.11 is a switching element characterised by a slow-make mechanism with a single normally open (1NO) contact configuration, featuring durable screw terminals. This component is constructed using silver, which ensures optimal conductivity and reliability in electrical connections. The slow-make action is specifically designed to provide controlled contact engagement, reducing electrical noise and arcing, which enhances the longevity of the component in industrial settings. This switching element is commonly employed in control panels and automation systems.
| Type |
Switch element |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul, Vde |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 No |
| Contacts Material |
Silver |
| Electrical Lifetime |
=50 000 Cycles Of Operation At 250vac, 2a, Cosf 0.95, |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Material |
Plastic, According To Ul 94 V0 |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 61058-1 |
| Rotary Positions |
2 Positions |
| Shock Resistance |
Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27) |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Screw terminal |
| Thermal Current Ith |
5 A, According To En / Iec 60947-5-1 |
| Vibration Resistance |
Max. 100 M / S² From 10 Hz ... 500 Hz, (sinusoidal En Iec 60068-2-6) |
| Weight |
0.01591 |
