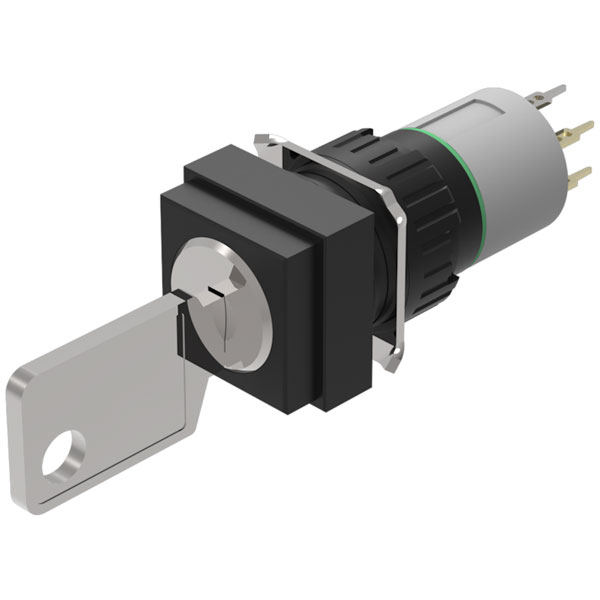

EAO 51-445.036D Keylock switch 2 positions main LL 1NC+1NO UT 18x18 gold A 311

EAO 51-445.036D keylock switch is a precise, two-position control device featuring both a normally closed (NC) and a normally open (NO) contact configuration. The unit is distinguished by its durable construction, incorporating an 18x18 mm switch assembly with gold-plated contacts, ensuring reliable performance in critical applications. Often employed in control panel interfaces and industrial machinery, this switch facilitates secure operation by allowing user access through key activation, thus preventing unauthorized use.

Type	Key Switch
Approbations	Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul
Contacts Concat	1 Nc / 1 No
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	18 Mm X 18 Mm
Front Form	Square
Ip Front Protection	Ip65, According To Din En 60529
Mechanical Lifetime	50 000 Cycles Of Operation
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Rotary Positions	2 Positions
Shock Resistance	15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal)
Switching Action Concat	Rest (a) - Maintained
Switching Angle Rotation Concat	90° Right
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.01881
