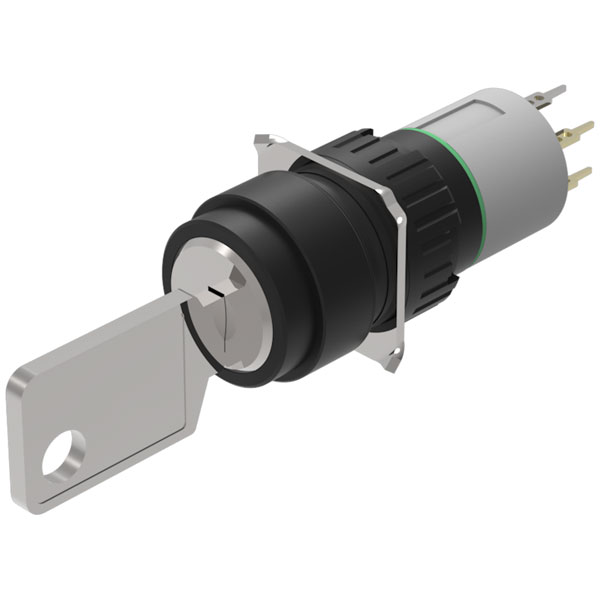

EAO 51-414.036D Keylock switch 2 positions main LL 2NO UT D18 gold A 311

EAO 51-414.036D is a keylock switch designed with two positions for main functionality, featuring two normally open (2NO) contacts. It is constructed with gold alloy contacts, providing reliable conductivity and durability in demanding environments. The switch has a maintained locking state and a mounting diameter of 18 mm, making it suitable for installing in various industrial panels and control systems. Typical applications include use in secure access control for industrial machinery, transport systems, and emergency stopping mechanisms where controlled access required.

Type	Key Switch
Approbations	Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul
Contacts Concat	2 No
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	Ø 18mm
Front Form	Round
Ip Front Protection	Ip65, According To Din En 60529
Mechanical Lifetime	50 000 Cycles Of Operation
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Rotary Positions	2 Positions
Shock Resistance	15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal)
Switching Action Concat	Rest (a) - Maintained
Switching Angle Rotation Concat	90° Right
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.01821
