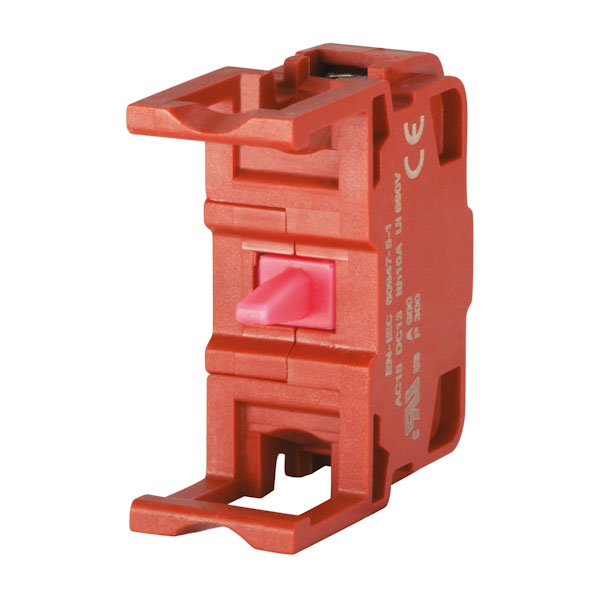

EAO 46-312.1Z70 Contact block N.C., ring lug

EAO 46-312.1Z70 Contact block N.C., ring lug, is a high-quality component designed for use in various electrical control systems. This contact block features a normally closed (N.C.) configuration, ensuring that the circuit remains closed until actuated. It is equipped with a ring lug terminal, providing a secure and reliable connection for electrical wiring applications. Typically utilised in industrial automation, this contact block is suitable for switchgear, control panels, and machinery that require dependable switching operations.

Type	Contact block
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Colour	Red
Conformities	Ce
Contacts Concat	1 Nc
Contacts Material	Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	It
Material	Plastic
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Pollution degree	3
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching System	Slow-make Switching Element
Terminal Concat	Ring Cable Lug Screw Terminal
Thermal Current Ith	10 A (iec-en60947-1)
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.010552
