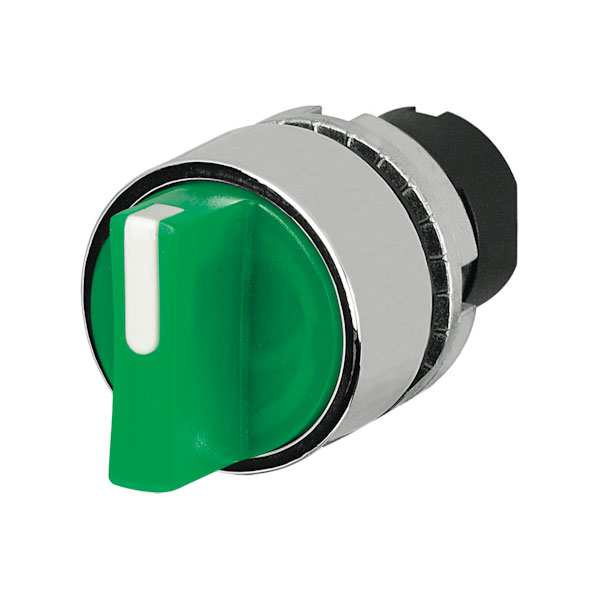

EAO 46-2W44.3CM0.001 Selector switch illuminated green 2-position Cam A spring

EAO 46-2W44.3CM0.001 is an illuminated knob selector switch that features a green LED and is designed for a 2-position functionality. Specifically configured with Cam A, this switch is engineered to provide reliable performance in control panels, machinery interfaces, and equipment requiring user input. Its illumination allows operators to easily identify the selected position even in low-light environments, enhancing operational efficiency and safety.

Type	Selector Switch
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Metal
Front Dimension Concat	Ø 30mm
Front Form	Round
Ik Front Protection	Ik03
Ip Front Protection	Ip65
Lever Bar Colour	White
Lever Colour	Green
Lever Shape	Short
Max No Modules	2
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained - Momentary
Switching Angle Rotation Concat	90°
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.038
