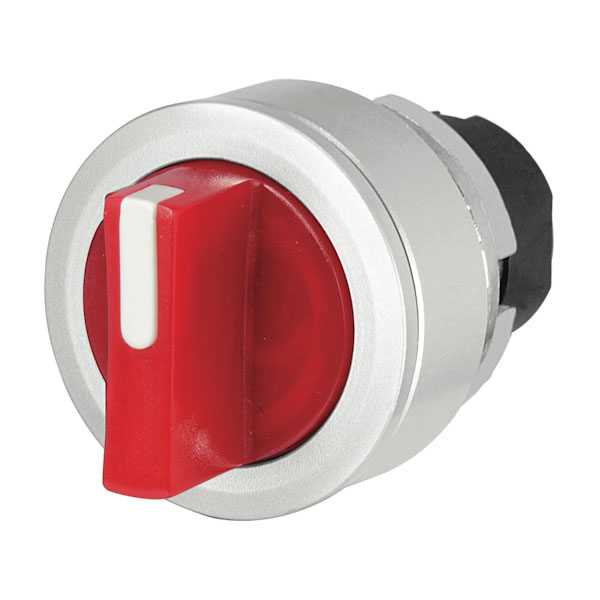

EAO 46-2W28.4CE0.001 is a knob selector switch designed for precise operational control, characterised by its illuminated red colour and flush-mount design which allows for seamless integration into control panels. This switch features a 2-position configuration with Cam A, providing reliable and intuitive selection options for users. Its robust construction makes it suitable for diverse engineering applications, including use in industrial automation systems and machinery control panels, where clear visual status indication and accessibility are essential.
| Type |
Selector Switch |
| Approbations |
Csa, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Flush |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Aluminium |
| Front Dimension Concat |
Ø 35mm |
| Front Form |
Round |
| Ik Front Protection |
Ik04 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Red |
| Lever Shape |
Short |
| Max No Modules |
4 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
L |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Maintained |
| Switching Angle Rotation Concat |
90° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.036 |
