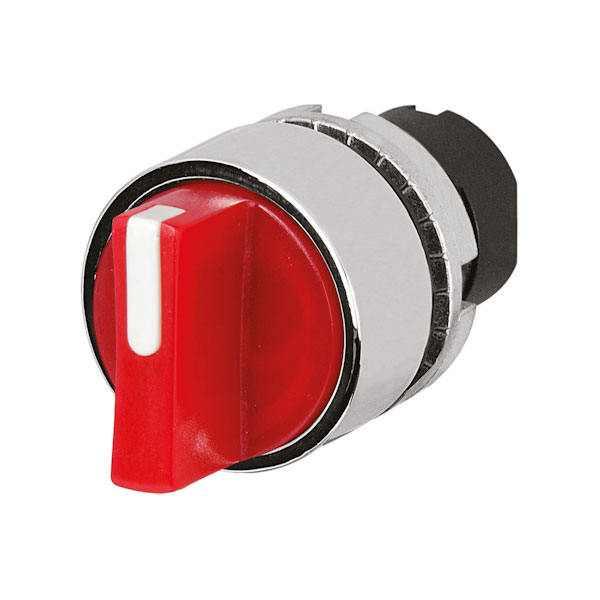

EAO 46-2W28.3CP0.001 Selector switch illuminated red 2-position Cam A metal

EAO 46-2W28.3CP0.001 is a knob selector switch that features an illuminated design in red and offers a 2-position functionality with Cam A construction. The switch is crafted from metal, ensuring robustness and durability in demanding environments where reliable performance is critical. Its design lends itself well to use in industrial control panels, machinery, and automation systems where precise control and indication are required. The high-quality construction of this selector switch aids in maintaining consistent operational standards.

Type	Selector Switch
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Metal
Front Dimension Concat	Ø 30mm
Front Form	Round
Ik Front Protection	Ik03
Ip Front Protection	Ip65
Lever Bar Colour	White
Lever Colour	Red
Lever Shape	Short
Max No Modules	2
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest - Maintained
Switching Angle Rotation Concat	90°
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.038
