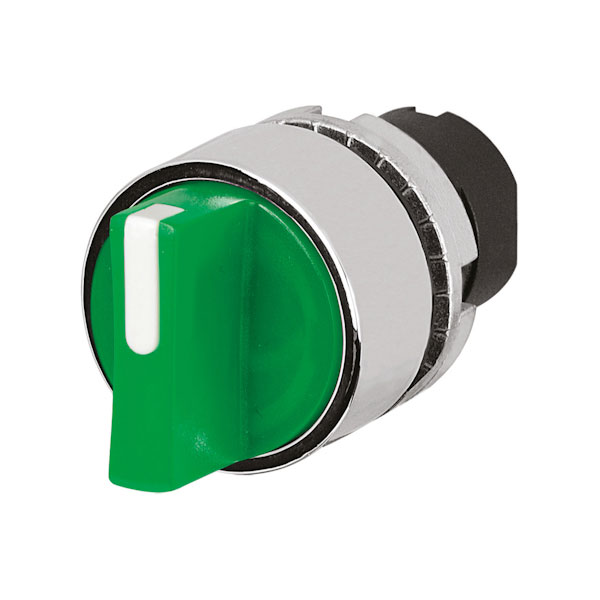

EAO 46-2W28.3CM0.001 is an illuminated knob selector switch designed for precise control and indication in various industrial applications. This component features a robust metal construction with a green illumination, ensuring both durability and visibility in demanding environments. The switch is a 2-position device incorporating Cam A, providing straightforward operation for selecting between two different states or functions in an electrical circuit. Typical uses include machinery control panels, where reliable switching and clear visual feedback are required for operational safety.
| Type |
Selector Switch |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Metal |
| Front Dimension Concat |
Ø 30mm |
| Front Form |
Round |
| Ik Front Protection |
Ik03 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Green |
| Lever Shape |
Short |
| Max No Modules |
2 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Rest - Maintained |
| Switching Angle Rotation Concat |
90° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.038 |
