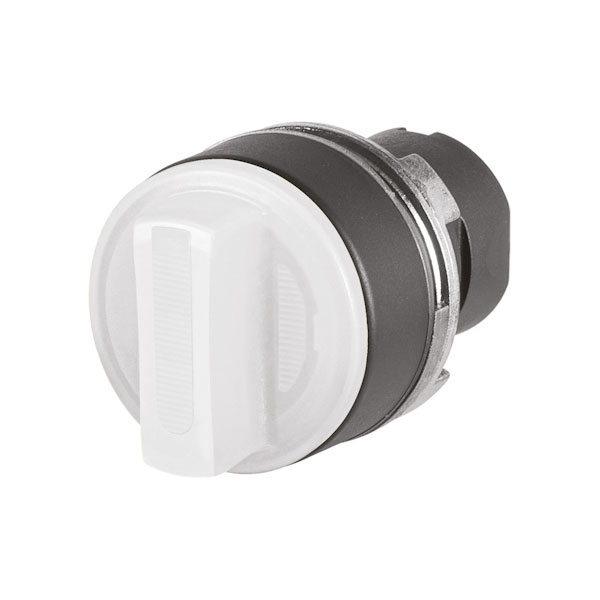

EAO 46-2W28.1CN0.001 Knob selector switch,illuminated,white, 2-position, Cam A

EAOs 46-2W28.1CN0.001 is a knob selector switch featuring an illuminated, white, 2-position design with a Cam A configuration. This switch is engineered for reliable performance in a variety of industrial settings, offering precise control and ease of operation. The illumination feature ensures visibility in low-light conditions, enhancing its suitability for control panels and machinery dashboards. Due to its robust design, it is commonly employed in automotive and manufacturing applications where durability and reliability are essential.

Type	Selector Switch
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 30mm
Front Form	Round
Ik Front Protection	Ik03
Ip Front Protection	Ip65
Lever Bar Colour	White
Lever Colour	White
Lever Shape	Short
Max No Modules	2
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest - Maintained
Switching Angle Rotation Concat	90°
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.027
