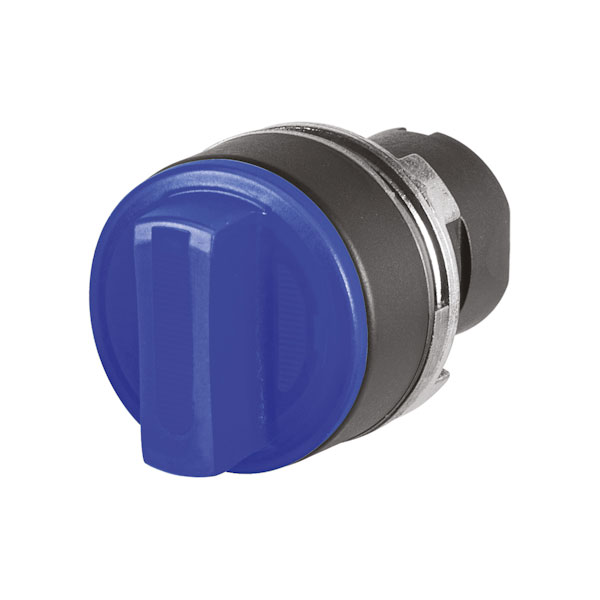

EAO 46-2W19.1CJ0.004 Knob selector switch, illuminated, blue, 3-position, Cam O

EAOs 46-2W19.1CJ0.004 is a knob selector switch characterised by its illuminated blue design and versatile 3-position cam functionality. This switch is engineered for precise control and high visibility in various applications, ensuring reliable operation in challenging environments. Often employed in industrial control panels, machinery, and equipment dashboards, its robust construction and illumination are essential for environments where clear indication and durable components are critical. The switchs construction supports easy integration into complex systems.

Type	Selector Switch
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 30mm
Front Form	Round
Ik Front Protection	Ik03
Ip Front Protection	Ip65
Lever Bar Colour	Blue
Lever Colour	Blue
Lever Shape	Short
Max No Modules	2
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	3 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained - Rest - Maintained
Switching Angle Rotation Concat	45° Left / 45° Right
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.027
