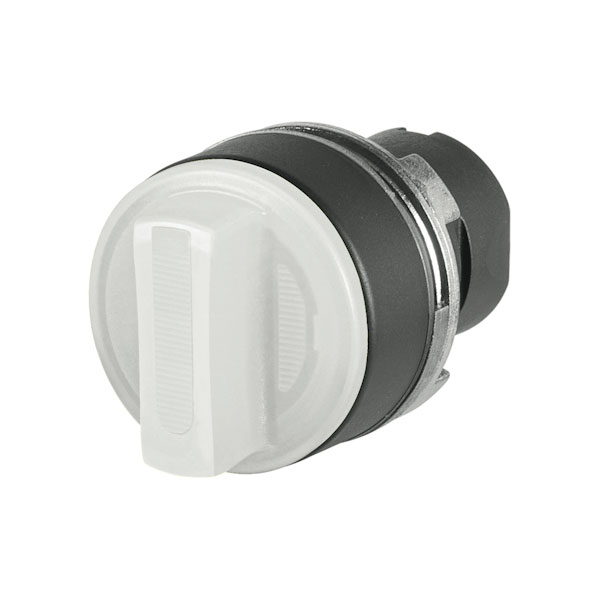

EAO 46-2W0S.1CN0.004 Knob selector switch,illuminated, white, 3-position, C

EAO 46-2W0S.1CN0.004 is an illuminated knob selector switch that features a white, three-position configuration. This switch is designed with precision to support reliable switching functions in various control panels, offering clear operational status through its illumination feature. It is particularly useful in applications where visual indication of the selectors position is critical, such as in industrial automation, control systems, and machinery operations. The robust materials and design ensure durability and reliability.

Type	Selector Switch
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 30mm
Front Form	Round
Ik Front Protection	Ik03
Ip Front Protection	Ip65
Lever Bar Colour	White
Lever Colour	White
Lever Shape	Short
Max No Modules	2
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	3 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary - Rest - Momentary
Switching Angle Rotation Concat	45° Left / 45° Right
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.027
