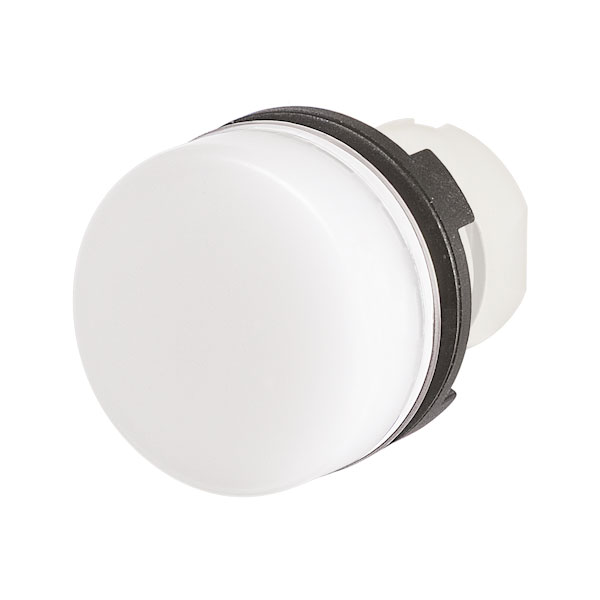

EAO 46-2T00.10N0.000 Modular pilot light, white

EAO 46-2T00.10N0.000 is a modular pilot light, white in colour, designed for use in a variety of industrial and engineering applications. The product features a robust construction suitable for demanding environments, providing reliable visual indication for control panels and machinery. With its modular design, it offers flexibility and ease of integration into existing systems. Typical applications include use in automation systems, electrical panels, transport machinery, and control cabinets, where clear status indication is essential.

Type	Pilot Light
Lamp/Lens Colour	White
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	White
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Illumination Colour Concat	White
Ip Front Protection	Ip65
Lens Cap Colour	White
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.009
