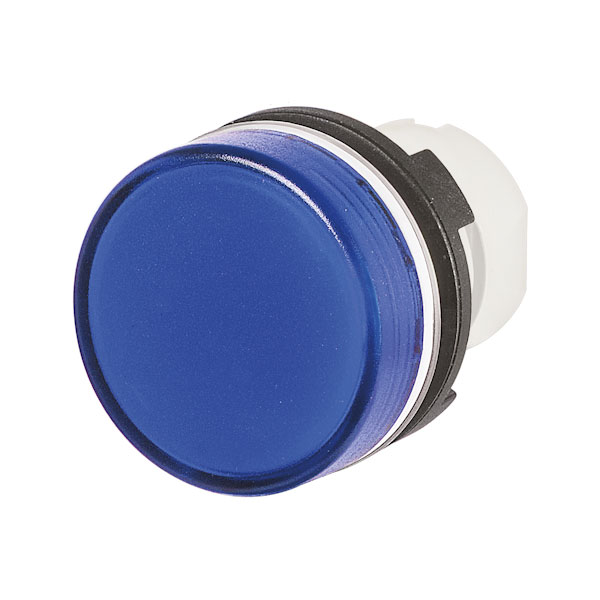

EAO 46-2T00.10J0.000 Modular pilot light, blue

EAOs 46-2T00.10J0.000 is a modular pilot light designed for engineering applications where visual signalling for machine and system status is required. This particular model features a blue lens, which provides clear visual indication in various industrial environments. The pilot light is designed for easy integration into control panels and other equipment, ensuring consistent performance under demanding conditions. Commonly used in machinery, automation systems, and electrical panels, it is engineered to comply with rigorous industry standards.

Type	Pilot Light
Lamp/Lens Colour	Blue
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	White
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Illumination Colour Concat	Blue
Ip Front Protection	Ip65
Lens Cap Colour	Blue
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.009
