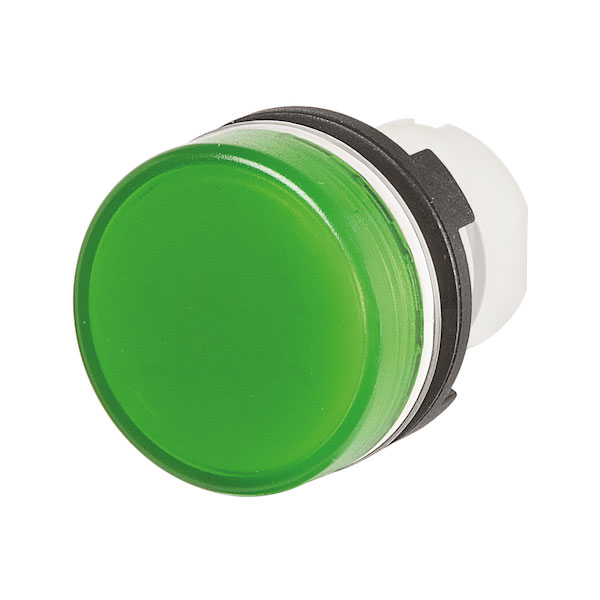

EAO 46-2T00.10H0.000 Modular pilot light, green

EAO 46-2T00.10H0.000 is a modular pilot light designed with precision and reliability in mind for engineering applications. This component features a robust green LED indicator, suitable for signalling and status indication in a variety of electronic and electromechanical systems. The modular design allows for easy integration into control panels, ensuring adaptability in both industrial environments and automation systems. Additionally, its compact size optimises space within enclosures, while maintaining high visibility and performance standards.

Type	Pilot Light
Lamp/Lens Colour	Green
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	White
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Illumination Colour Concat	Green
Ip Front Protection	Ip65
Lens Cap Colour	Green
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.009
