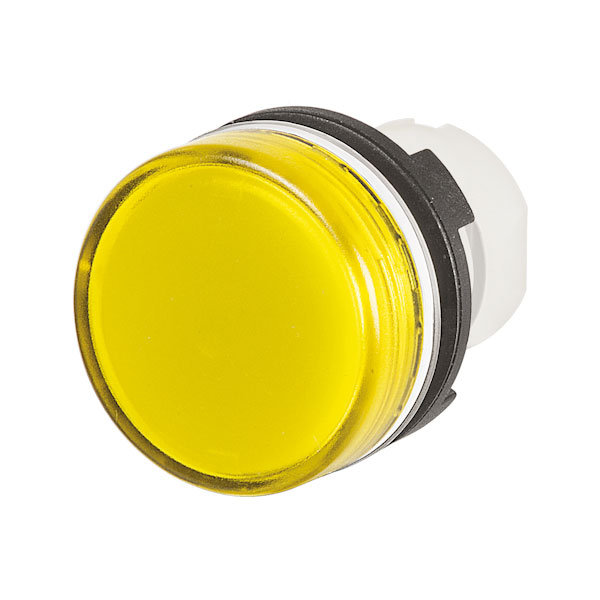

EAO 46-2T00.10G0.000 Modular pilot light, yellow

EAOs 46-2T00.10G0.000 is a modular pilot light designed to deliver clear visual signalling in electrical systems. This yellow indicator is engineered for compatibility with a range of control panels and industrial equipment, where it serves to enhance the visibility and status indication of operational processes. Constructed to meet rigorous industry standards, it provides reliable performance in demanding environments, ensuring durability and longevity. Typical applications for this pilot light include use in automation systems, machinery control interfaces, and safety systems.

Type	Pilot Light
Lamp/Lens Colour	Yellow
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	White
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Illumination Colour Concat	Yellow
Ip Front Protection	Ip65
Lens Cap Colour	Yellow
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.009
