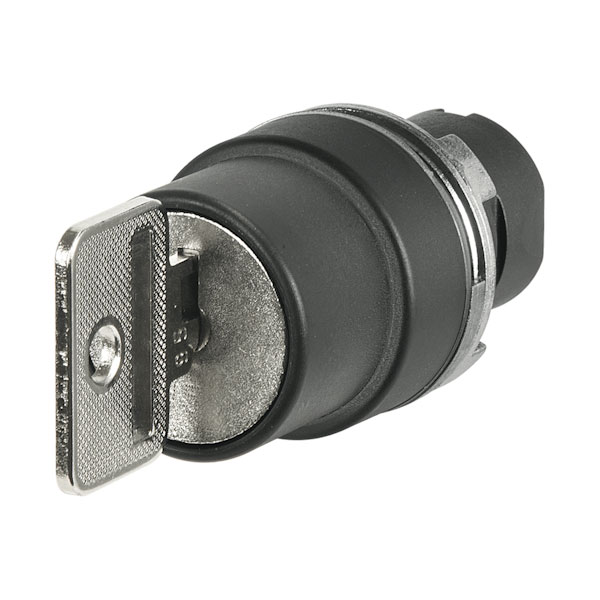

EAO 46-2925.1000.7P8 Key switch 2-position K95 key Cam B key removal II

EAO 46-2925.1000.7P8 is a key selector switch with two positions and is equipped with a K95 key, utilizing Cam B for its operation. This robust device permits key removal in position II, providing secure, controlled access in various applications. Its design ensures reliable operation in demanding environments, making it suitable for use in industrial control panels, automated systems, and machinery where precise control is required. The switchs versatility and durability contribute to its widespread use in control panels and industrial machines.

Type	Key Switch
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik06
Ip Front Protection	Ip65
Max No Modules	8
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest - Maintained (a)
Switching Angle Rotation Concat	60° Right
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.076
