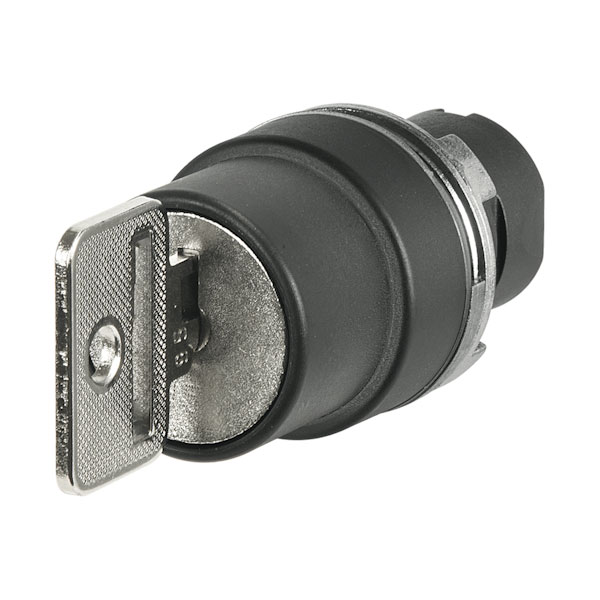

EAO 46-290K.1000.7P8 Key switch 2-position K95 key Cam B key removal 0 s

EAO 46-290K.1000.7P8 refers to a reliable key selector switch designed for precise operation within control panels and industrial machines. This 2-position selector switch features a K95 key and utilises Cam B configuration, ensuring a straightforward but secure method of toggling between circuit states. Notably, the key is removable only in the 0 position, enhancing security by preventing unauthorized operation in its active position. The switch is ideally suited for applications demanding secure controlled access.

Type	Key Switch
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik06
Ip Front Protection	Ip65
Max No Modules	8
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest (a) - Momentary
Switching Angle Rotation Concat	60° Right
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.076
