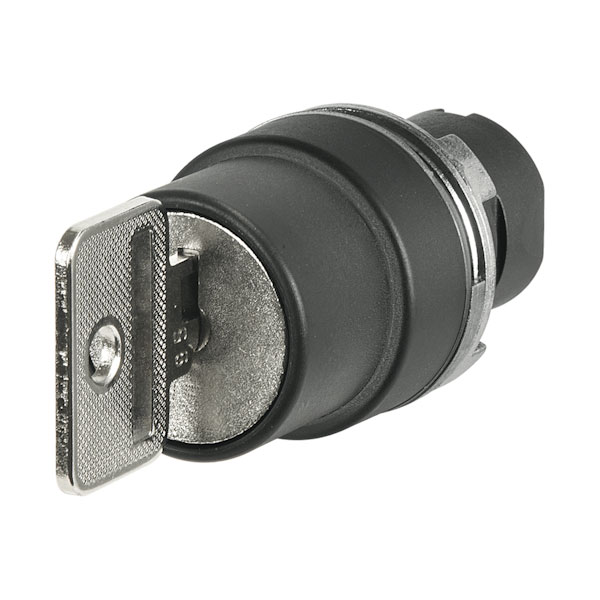

EAO 46-290H.1000.7PD Key switch 2-position K95 key Cam A key removal I-II

EAO 46-290H.1000.7PD is a robust and reliable key selector switch designed to provide precise control within electrical circuits. This component features a 2-position operation facilitated by a K95 key, allowing for secure and selective switching between positions I and II, with key removal possible in both states. The Cam A configuration ensures smooth actuation and durability, suitable for a wide range of industrial environments. Common applications include machinery control panels, safety systems, and any setting where controlled operation access is required.

Type	Key Switch
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik06
Ip Front Protection	Ip65
Max No Modules	8
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest (a) - Maintained (a)
Switching Angle Rotation Concat	120°
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.076
