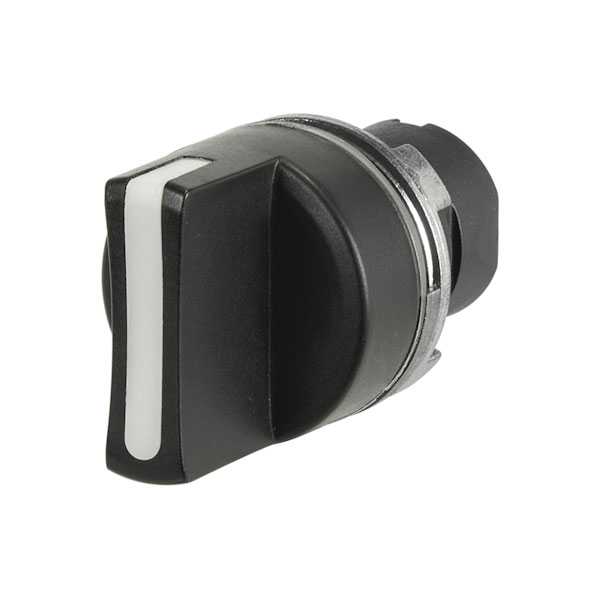

EAOs 46-2844.1CV0.008 is a white knob selector switch designed with two distinct positions and features a Cam B configuration with a spring return mechanism from the right-hand side. This selector switch is characterised by its robust construction suitable for demanding industrial environments, ensuring reliable operation over an extended period. The spring return from the right position provides a tactile response, enabling precise control in applications where momentary activation is required. It finds typical use in control panels and machinery operation interfaces.
| Type |
Selector Switch |
| Approbations |
Csa, Eac, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
Ø 29mm |
| Front Form |
Round |
| Ik Front Protection |
Ik06 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Black |
| Lever Shape |
Short |
| Max No Modules |
8 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Momentary |
| Switching Angle Rotation Concat |
60° Right |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.0274 |
