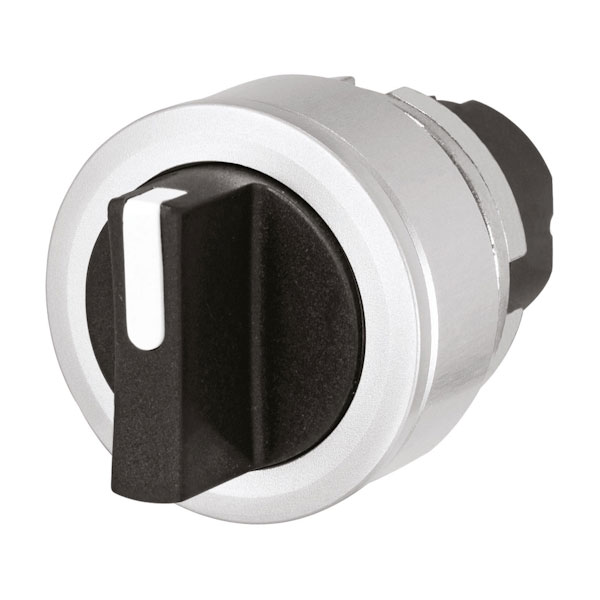

EAO 46-2828.4CV0.001 knob selector switch is designed for use in various industrial control applications. This switch features a black, flush-mount design, offering a streamlined appearance and minimising protrusions in control panels. It operates as a 2-position cam switch, allowing users to select between two circuit pathways or states. The engineering applications for this component typically include machinery operation panels, instrumentation interfaces, and control cabinets where reliable and straightforward user input is essential.
| Type |
Selector Switch |
| Approbations |
Csa, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Flush |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Aluminium |
| Front Dimension Concat |
Ø 35mm |
| Front Form |
Round |
| Ik Front Protection |
Ik04 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Black |
| Lever Shape |
Short |
| Max No Modules |
6 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
L |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Maintained |
| Switching Angle Rotation Concat |
90° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.039 |
