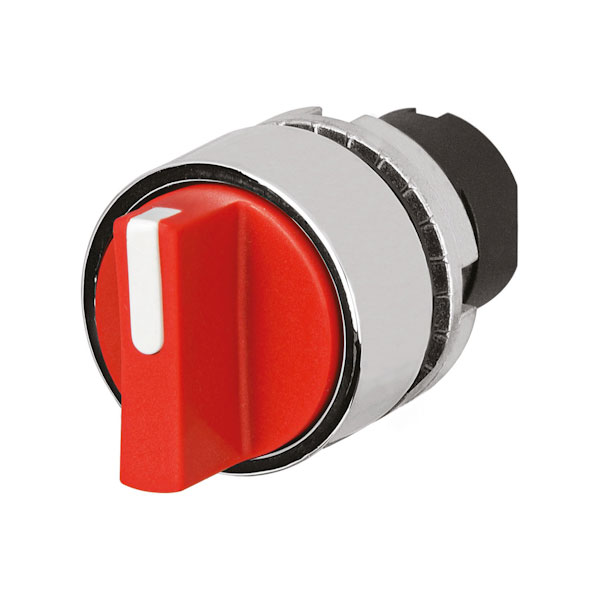

EAOs 46-2828.3CP0.001 knob selector switch is a robust, red, 2-position control device designed for precise operation in various industrial settings. It features Cam A configuration and is constructed with a durable metal body, ensuring resilience in demanding environments. This selector switch is typically employed in control panels, machinery, and automation systems where reliable switching mechanisms are critical. Its design facilitates straightforward installation and integration into existing systems, providing engineers with a versatile and dependable component.
| Type |
Selector Switch |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Metal |
| Front Dimension Concat |
Ø 30mm |
| Front Form |
Round |
| Ik Front Protection |
Ik03 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Red |
| Lever Shape |
Short |
| Max No Modules |
4 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Rest - Maintained |
| Switching Angle Rotation Concat |
90° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.038 |
