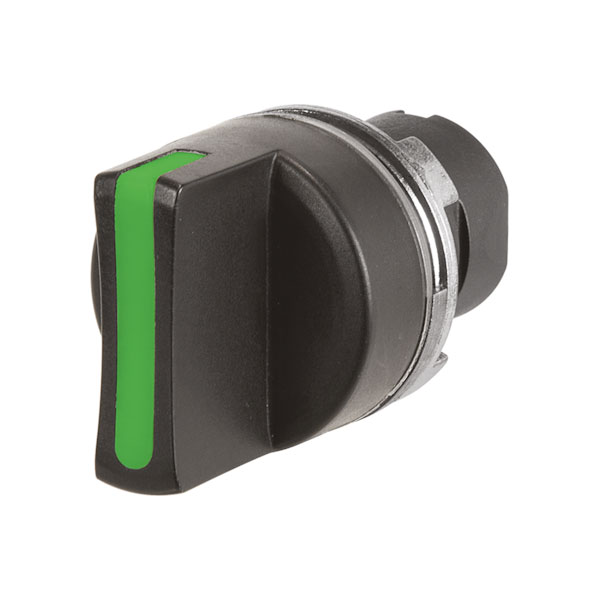

EAO 46-2819.1EX0.008 is a knob selector switch characterised by its green colour and three-position configuration with a Cam T design. This switch is engineered for reliability and durability in complex industrial environments, offering precise control and operational efficiency. It is typically utilised in control panels, machinery operation systems, and automation equipment where versatile selection options are required. Designed to meet rigorous standards, it provides an ergonomic interface for operators and contributes to the safety and functionality of intricate electromechanical equipment and systems.
| Type |
Selector Switch |
| Approbations |
Csa, Eac, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
Ø 29mm |
| Front Form |
Round |
| Ik Front Protection |
Ik06 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
Green |
| Lever Colour |
Black |
| Lever Shape |
Short |
| Max No Modules |
8 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
3 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Rest - Maintained |
| Switching Angle Rotation Concat |
60° Left / 60° Right |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.0274 |
